Page 271

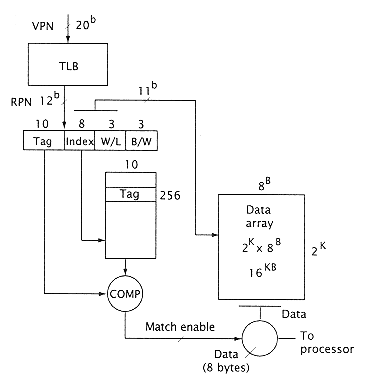

Figure 5.6
Direct mapping.
Example:
24b real address
8B physical word
16KB cache
64B line
\ 256 line (16K/64) in cache
Advantage Cache directory and cache are simultaneously accessed
Disadvantage Line in memory location maps into only one line in cache.
Steps of operation:
1. Translate VPN to RPN with TLB.
2. Access cache array and directory simultaneously and compare tag with directory entry to ensure correct line is accessed.
3. Access cache array with index and offset (11b) bits.
4. If compare valid, enable data to go to processor.
