Page 270

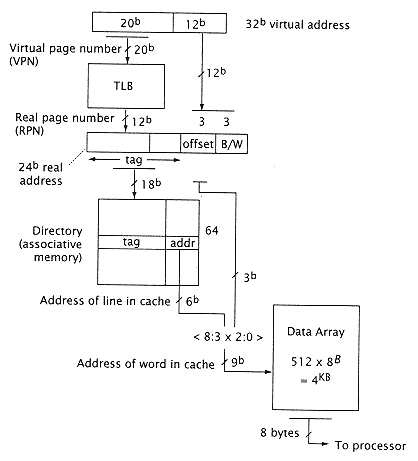

Figure 5.5
Fully associative mapping.
CPU produces a virtual address from the AG function. The lower 12b (4K pages) of the virtual address are the same as the real address.
Example:
24b real address (real memory size 16MB)
8B physical word
4KB cache
64B line
\ 64 line (4K/64) in cache
Steps of operation:
1. Translate VPN to RPN with TLB.
2. Access the cache directory, then the cache.
3. Access cache with addr from the directory index and offset 9b bits.
4. If compare valid, enable data to go to processor.
