Using Ezmap

Mp 1. What is Ezmap? 63

Mp 1.1 Table of Ezmap user entry points 64

Single-call entry point 64

Map initialization routines 64

Latitude, longitude, and limb line drawing routines 64

Labeling routine 64

Map drawing and control routines 64

Positioning routines 64

Point and line routines 64

Color function 65

Inverse transformation routine 65

Parameter routines 65

Mp 1.2 Table of Ezmap parameters 66

Mp 1.3 Table of Ezmap map projections 67

Mp 1.4 Description of projections: Conic 68

Mp 1.5 Description of projections: Azimuthal 70

Mp 1.6 Description of projections: Cylindrical 72

Mp 1.7 Producing a quick and dirty plot 74

Mp 1.8 What calls do I need to get my Ezmap plot? 78

Mp 1.9 Ezmap parameters: What they do and how to use them 79

Mp 2. Getting set up 81

Mp 2.1 Positioning the plot in the frame 82

Mp 2.2 Choosing your map projection 84

Mp 2.3 Choosing your map projection: Satellite view 86

Mp 2.4 Choosing map outlines to be drawn 88

Mp 2.5 Setting limits for the projection 90

Mp 2.6 Setting map line colors 94

Mp 2.7 Controlling Ezmap lines 96

Mp 2.8 Controlling geographic and political outlines 98

Mp 2.9 Rectangular and elliptical perimeters 100

Mp 2.10 Saving and retrieving Ezmap parameters 102

Mp 3. Simple maps 103

Mp 3.1 Initializing Ezmap 104

Mp 3.2 Grids: Drawing latitude and longitude lines 106

Mp 3.3 Grids: Dash patterns 108

Mp 3.4 Labeling 110

Mp 3.5 Drawing political and geographic outlines 112

Mp 3.6 A shortcut 114

Mp 4. Producing maps with masking or filled areas 117

Mp 4.1 Color and area identifiers in Ezmap 118

Mp 4.2 Ezmap group identifiers 120

Mp 4.3 Initialize Ezmap with Areas 122

Mp 4.4 Labeling 124

Mp 4.5 Grid lines with masking 126

Mp 4.6 Grid lines with masking: Writing a masking routine 128

Mp 4.7 Filling areas 130

Mp 4.8 Filling areas: Writing a fill routine 132

Mp 5. Points, lines, and inverse transformations 135

Mp 5.1 Projecting a point onto the map 136

Mp 5.2 Inverse transformations 138

Mp 5.3 Drawing lines on a simple map 140

Mp 5.4 Drawing a great circle between two points 142

Mp 5.5 Adding lines to an area map 144

Mp 5.6 Drawing lines masked by an area map 148

Mp 6. Table of Ezmap area identifiers 153

Mp 7. Ezmap parameter descriptions 169

Mp 1. What is Ezmap?

Examples of Ezmap

Mp 1.1 Table of Ezmap user entry points

Single-call entry point

SUPMAP

Single-call map-drawing routine. See module Mp 1.7.

Map initialization routines

MAPINT

Initializes Ezmap. See modules Mp 3.1 and Mp 4.3.

MAPBLA

Adds the geographical map to an area map. See module Mp 4.3.

Latitude, longitude, and limb line drawing routines

MAPGRD

Draws latitude/longitude grid. See module Mp 3.2.

MAPGRM

Draws latitude/longitude grid with masking. See module Mp 4.5.

Labeling routine

MAPLBL

Labels map. See modules Mp 3.4 and Mp 4.4.

Map drawing and control routines

MAPLOT

Draws geographical and political outlines. See module Mp 3.5.

MAPDRW

Draws a complete map after user sets basic parameters. See module Mp 3.6.

MAPUSR

Changes line attributes for various parts of the map. See module Mp 2.7.

Positioning routines

MAPPOS

Positions map in frame. See module Mp 2.1.

MAPROJ

Sets global map projection. See module Mp 2.2.

MAPSET

Specifies rectangular portion of the u/v plane to draw. See module Mp 2.5.

MAPRS

Re-executes a call to SET. See module Mp 2.10.

Point and line routines

MAPTRA

Projects points onto a geographic map, returns a special value for points that are unprojectable and for points outside the perimeter. See module Mp 5.1.

MAPTRN

Projects points onto a geographic map, returns a special value for points that are unprojectable, but not for points outside the perimeter.

MAPEOD

Examines each outline-dataset segment. See module Mp 2.8.

MAPIT

Draws a line on a map, omitting nonvisible portions. See module Mp 5.3.

MAPIQ

Terminates a line drawn by MAPIT. See module Mp 5.3.

MAPITA

Used to insert a line in an area map. See module Mp 5.5.

MAPIQA

Used to terminate insertion of a line in an area map. See module Mp 5.5.

MAPITM

Used to draw a masked line. See module Mp 5.6.

MAPIQM

Used to terminate drawing of a masked line. See module Mp 5.6.

MAPGCI

Returns points interpolated on a great circle between two points. See module Mp 5.4.

Color function

MAPACI

Obtains a color index for a given area such that no two adjacent areas have the same color index. See module Mp 4.1.

Inverse transformation routine

MAPTRI

Computes the latitude and longitude of a point from its u/v coordinates. See module Mp 5.2.

Parameter routines

MAPSAV

Saves current state. See modules Mp 1.9 and Mp 2.10.

MAPRST

Restores state saved by MAPSAV. See modules Mp 1.9 and Mp 2.10.

MPSETC

Sets character parameters. See module Mp 1.9.

MPSETI

Sets integer parameters. See module Mp 1.9.

MPSETR

Sets real parameters. See module Mp 1.9.

MPGETC

Gets character parameters. See module Mp 1.9.

MPGETI

Gets integer parameters. See module Mp 1.9.

MPGETR

Gets real parameters. See module Mp 1.9.

Mp 1.2 Table of Ezmap parameters

The behavior of a typical routine in an NCAR Graphics utility is sometimes determined entirely by the routine's arguments, but frequently it is also affected by the value of one or more of the utility's parameters. A "parameter" is a variable that controls the behavior of a utility; parameters are accessed via parameter-access routines that can set or retrieve the parameter value.

Instructions for setting and retrieving Ezmap parameters are provided in module "Mp 1.9 Ezmap parameters: What they do and how to use them."

----------------------------------------------------------------------------------------
Parameter  Brief description                        Fortran type  Examples  Module
----------------------------------------------------------------------------------------
AR         ARea                                     Character     ---       Mp 7.
C1         Color index 1 (for perimeter)            Integer       cmpclr    Mp 2.6
C2         Color index 2 (for grid)                 Integer       cmpclr    Mp 2.6
C3         Color index 3 (for labels)               Integer       cmpclr    Mp 2.6
C4         Color index 4 (for limb line)            Integer       cmpclr    Mp 2.6
C5         Color index 5 (for continents)           Integer       cmpclr    Mp 2.6
C6         Color index 6 (for US states)            Integer       cmpclr    Mp 2.6
C7         Color index 7 (for countries)            Integer       cmpclr    Mp 2.6
DA         grid DAshline pattern                    Integer       cmpdd     Mp 3.3
DD         Distance between Dots                    Real          cmplot    Mp 3.5
DL         Dotted Line flag                         Integer       ---       Mp 7.
DO         Dotted Outline flag                      Integer       cmplot    Mp 3.5
EL         ELliptical perimeter flag                Integer       cmpel     Mp 2.9
ER         ERror                                    Integer       ---       Mp 7.
G1         Group 1 (group identifier for geo        Integer       cmpgrp    Mp 4.2
           graphic entities and perimeter)
G2         Group 2 (group identifier for vertical   Integer       cmpgrp    Mp 4.2
           strips)
GD         Grid Drawing resolution                  Real          cmpgrd    Mp 3.2
GR         GRid spacing                             Real          cmpgrd    Mp 3.2
IN         INitialization flag                      Integer       ---       Mp 7.
LA         meridian/pole LAbel flag                 Integer       cmplbl,   Mp 3.4,
                                                                  cmplab    Mp 4.4
LS         Label Size                               Integer       cmplbl,   Mp 3.4,
                                                                  cmplab    Mp4.4
MV         Minimum Vector length                    Real          cmplot    Mp 3.5
OU         OUtline data flag                        Character     cmpou     Mp 2.4
P1         PLM1(1) value                            Real          ---       Mp 7.
P2         PLM2(1) value                            Real          ---       Mp 7.
P3         PLM3(1) value                            Real          ---       Mp 7.
P4         PLM4(1) value                            Real          ---       Mp 7.
P5         PLM1(2) value                            Real          ---       Mp 7.
P6         PLM2(2) value                            Real          ---       Mp 7.
P7         PLM3(2) value                            Real          ---       Mp 7.
P8         PLM4(2) value                            Real          ---       Mp 7.
PE         PErimeter flag                           Integer       cmpel     Mp 2.9
PN         PLON value                               Real          ---       Mp 7.
PR         PRojection specifier value               Character     ---       Mp 7.
PT         PLAT value                               Real          ---       Mp 7.
RE         REsolution                               Integer       cmplot    Mp 3.5
RO         ROtation                                 Real          ---       Mp 7.
SA         SAtellite view distance                  Real          cmpsat    Mp 2.3
S1         Satellite viewing angle                  Real          cmpsat    Mp 2.3
S2         Satellite view projection                Real          cmpsat    Mp 2.3
SR         lat/lon Search Radius                    Real          ---       Mp 7.
VS         Vertical-Stripping parameter             Integer       cmpgrp    Mp 4.2
XL         XLOW value                               Real          ---       Mp 7.
XR         XROW value                               Real          ---       Mp 7.
YB         YBOW value                               Real          ---       Mp 7.
YT         YTOW value                               Real          ---       Mp 7.
----------------------------------------------------------------------------------------

Mp 1.3 Table of Ezmap map projections

--------------------------------------------------
Abbreviation  Projection               Type
--------------------------------------------------
LC            Lambert Conformal        Conic
ST            STereographic            Azimuthal
OR            ORthographic             Azimuthal
LE            Lambert Equal-area       Azimuthal
GN            GNomonic                 Azimuthal
AE            Azimuthal Equidistant    Azimuthal
SV            Satellite View           Azimuthal
CE            Cylindrical Equidistant  Cylindrical
ME            MErcator                 Cylindrical
MO            MOllweide-type           Cylindrical
--------------------------------------------------

Mp 1.4 Description of projections: Conic

Ezmap uses three different kinds of projections to project maps of the Earth onto a two-dimensional surface: conic, azimuthal, and cylindrical. Conic projections map the surface of the earth onto a cone which is either tangent to the earth along a single circle or intersects it along two different circles. The cone is then cut from point to mouth, and spread out flat.

Illustration of a conic projection

Discussion

Mathematically, if LAT1 and LAT2 are the latitudes where the cone passes through the globe, and LAT1<>LAT2, then the "cone constant" is given by:

       LOG (COS(LAT1)) - LOG (COS(LAT2))
CONE = -------------------------------------------------
       LOG (TAN (45-S*LAT1/2)) - LOG (TAN (45-S*LAT2/2))

CONE*360 is the angular separation between the edges of the cut after the cone is opened onto the plane, as measured across the surface of the flattened cone. If (RLAT, RLON) is a point to be projected, then the following formulas give the coordinates of the projected point in the plotter plane.

R = (TAN (45-S * RLAT/2)) ** CONE
U = R * SIN (CONE * (RLON-CLON))
V = -S * R * COS (CONE * (RLON-CLON))

If LAT1=LAT2, then the cone is tangent to the globe along the single standard parallel and

CONE = COS (90 - S * LAT1)

The entire globe projects onto the u/v plane minus a wedge with its apex at the origin. This projection is best used to depict midlatitude regions of limited extent, where it is relatively free of distortion. The Lambert Conformal projection preserves angles. A portion of the u/v plane determined by the MAPSET call is the user coordinate system for drawing.

Mp 1.5 Description of projections: Azimuthal

The second kind of projection that Ezmap uses to project a map of the earth onto the plotter frame is the azimuthal projection. Azimuthal projections map the globe onto a plane whose origin touches the earth at the user-specified point (PLAT, PLON). The image may be rotated by the user-specified angle ROTA.

Illustration of an azimuthal projection

Discussion

• 1. Touch a plane (called the u/v plane here) to the earth at latitude 0 and longitude 0 (where the Greenwich parallel meets the equator); the earth is oriented with the North Pole at the top and the South Pole at the bottom.

• 2. Rotate the earth about its polar axis until the v axis is tangent to the meridian identified by PLON.

• 3. Rotate the earth, tilting one of the poles towards the plane until the point (PLAT, PLON) is touching the plane at its origin.

• 4. Rotate the earth clockwise through the angle ROTA about a line perpendicular to the u/v plane passing through the origin.

• 5. Use lines emanating from a central point within or behind the earth (depending on the projection) to project the globe onto the u/v plane.

• 6. Set up scales along the u/v axes.

• 7. Draw a rectangular or elliptical portion of the resulting map. This portion of the u/v plane is the user coordinate system.


Stereographic

R = TAN(A/2) = (1-COS(A)) / SIN(A)

As A approaches 180 degrees, R approaches infinity. The entire globe is projected onto the entire u/v plane. In practice, distortion becomes great when A is approximately 127 degrees or more. The center of the projection is the point on the earth's surface opposite the point of tangency with the projection plane.

Orthographic

R = SIN(A)

Points for which A>90 degrees are treated as invisible. Thus, a hemisphere is projected inside a circle of radius 1. The center of the projection is at infinity. All projection lines are parallel to each other and perpendicular to the u/v plane.

Lambert equal-area

R = 2 * SIN(A) / SQRT(2*(1+COS(A))

As A approaches 180 degrees, R approaches 2. The globe is projected into a circle of radius 2.

Gnomonic

R = TAN(A)

Points for which A>90 degrees are invisible. Thus, a hemisphere is projected to the entire u/v plane. In practice, distortion becomes great when A is approximately 65 degrees or more. The center of this projection is the center of the earth.

Azimuthal equidistant

R = A * ¶ / 180.0

`As A approaches 180 degrees, R approaches ¶. The globe is projected into a circle of radius ¶.

Basic satellite view

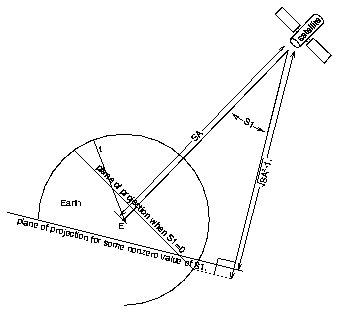

This formula applies only when S1=0, the basic view.

R = SQRT(SA*SA-1)*SIN(A)/(SA-COS(A))

where SA is the distance, in earth radii, from the center of the earth to a satellite above the point (PLAT, PLON). Points for which COS(A) < 1 / SA are invisible. The portion of the earth's surface that would be visible from the satellite is projected inside a circle of radius 1. The center of the projection is at the satellite's position. As the satellite moves further out, the satellite view projection approaches the orthographic projection. Two parameters, S1 and S2, may be used to modify the basic satellite view projection; they can be used to show the earth as it would look to a simple pinhole camera pointed in a specified direction.

Mp 1.6 Description of projections: Cylindrical

The third kind of projection Ezmap uses to project a map of the earth onto the plotter frame is the cylindrical projection. Cylindrical projections map the earth onto a cylinder that is tangent to the earth along a great circle passing through the user-specified point (PLAT, PLON) and tilted at the user-specified angle ROTA.

Illustration of a cylindrical projection

Discussion

• 1. Imagine that the earth is placed behind the u/v (projection) plane so that the point at latitude 0 and longitude 0 just touches the plane at latitude 0 and longitude 0. The north pole is at the top, and the south pole is at the bottom.

• 2. Rotate the earth about its polar axis until the v axis is tangent to the meridian identified by PLON.

• 3. Rotate the earth by tilting one of the poles directly toward you and the other pole directly away from you until the point (PLAT, PLON) is at the origin of the u/v plane.

• 4. Rotate the earth clockwise through the angle ROTA about a line perpendicular to the u/v plane passing through the point at latitude 0 and longitude 0.

• 5. Wrap the u/v plane around the globe to form a cylinder with the u axis touching the earth along a great circle.

• 6. Using the technique specific to the projection type, project geographical outlines, parallels, and meridians outward from the earth's surface onto the cylinder.

• 7. Cut the cylinder along a line parallel to its axis and opposite the origin.

• 8. Unwrap the cylinder.

• 9. Set up linear scales along the u and v axes.

• 10. Draw a rectangular or elliptical portion of the resulting map. This portion of the u/v plane is the user coordinate system.


Cylindrical equidistant

U = RLAT
V = RLON

where the entire globe is projected into a rectangle in the u/v plane. 180<=U<=180, and 90<=V<=90.

Mercator

U = RLON * ¶/180.0
V = ALOG (COT (45 - RLAT/2))

The entire globe is projected onto an infinite rectangle in the u/v plane. -¶<=U<=¶. There are no limits on V. In practice, distortion becomes high for latitudes within 5 degrees of either pole.

Mollweide type

(This is not a true Mollweide projection.)

U = RLON/90
V = COS (90-RLAT)

The entire surface of the globe is projected into an ellipse. -2<=U<=2, -1<=V<=1.

References

Lee, Tso-Hwa, "Students' Summary Reports, Work-Study Program in Scientific Computing," NCAR, 1968.

Parker, R.L., "2UCSD SUPERMAP: World Plotting Package."

Steers, J.A., An Introduction to the Study of Map Projections, University of London Press, 1962.

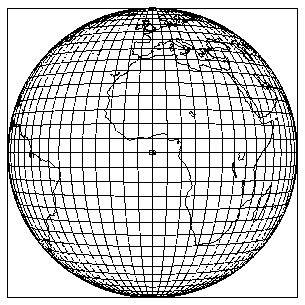

Mp 1.7 Producing a quick and dirty plot

A quick and dirty map

Code segment from cmpsup.f

1       REAL PLIM1(2), PLIM2(2), PLIM3(2), PLIM4(2)
2       DATA PLIM1 /0.0, 0.0/
3       DATA PLIM2 /0.0, 0.0/
4       DATA PLIM3 /0.0, 0.0/
5       DATA PLIM4 /0.0, 0.0/
6       CALL SUPMAP (7, 0., 0., 0., PLIM1, PLIM2, PLIM3, PLIM4, 1, 5, 0, 0,IERR)

Synopsis

 CALL SUPMAP (JPRJ, PLAT, PLON,
+ ROTA, PLIM1, PLIM2, PLIM3, PLIM4,
+ JLTS, JGRD, IOUT, IDOT, IERR)

Arguments

JPRJ

Integer, Input---Defines the projection type with the following values (values less than 1 are treated as 1, and values greater than 10 are treated as 10):

1 Stereographic

2 Orthographic

3 Lambert conformal conic

4 Lambert equal-area

5 Gnomonic

6 Azimuthal equidistant

7 Satellite view

8 Cylindrical equidistant

9 Mercator

10 Mollweide-type

Using the value 2 causes the Ezmap parameter SA to be zeroed. (If SA is greater than 1., a satellite-view projection is used rather than an orthographic projection; it specifies the distance of the satellite from the center of the earth in units of earth radii.) Using the value 7 causes SA to be examined. If it has a nonzero value, the value is left alone. If it has a zero value, its value is reset to 6.631, which is about right for a satellite in a geosynchronous equatorial orbit.

The sign of JPRJ, when IOUT is -1, 0, or +1, indicates whether the continental outlines are to be plotted or not. See the description of IOUT below.

PLAT, PLON, ROTA

Real, Input---Define the origin of the projection and its rotation angle. These arguments are used in the same way as they would be in a call to the routine MAPROJ. See module "Mp 2.2 Choosing your map projection" for a complete description.

JLTS

Integer, Input---Specifies how to choose the rectangular limits of the map to be drawn. JLTS also determines the meaning of PLIM1, PLIM2, PLIM3, and PLIM4, which take real numbers as values. JLTS takes one of the following values:

1 The maximum useful area produced by the projection is plotted. PLIM1, PLIM2, PLIM3, and PLIM4 are not used.

2 The points (PLIM1, PLIM2) and (PLIM3, PLIM4) represent opposite corners of the map. PLIM1 and PLIM3 are latitudes, in degrees. PLIM2 and PLIM4 are longitudes, in degrees. If a cylindrical projection is being used, the first point is assumed to be on the left edge of the map and the second point is on the right edge. The order makes no difference for other map projections. You cannot use JLTS=2 if any two adjacent corners of the desired map are outside the limb of projection.

3 PLIM1, PLIM2, PLIM3, and PLIM4 specify the minimum value of U, the maximum value of U, the minimum value of V, and the maximum value of V, respectively. Knowledge of the projection equations is necessary for using this option correctly.

Note: PLIM1, PLIM2, PLIM3, and PLIM4 are two-element real arrays. If 1<=JLTS<=4, then only the first element of each array is used.

4 PLIM1, PLIM2, PLIM3, and PLIM4 are positive angles, in degrees, representing angular distances from a point on the map to the left, right, bottom, and top edges of the map, respectively. For most projections, these angles are measured with the center of the earth at the vertex and represent angular distances from the point that projects to the origin of the u/v plane. For a satellite view projection, these angles are measured with the satellite at the vertex and represent angular deviations from the line of sight. Angular limits are particularly useful for polar projections and for the satellite view projection; they are not appropriate for the Lambert conformal conic projection and an error results if you attempt to use JLTS=4 with JPRJ=3.

5 PLIM1, PLIM2, PLIM3, and PLIM4 are two-element arrays giving the latitudes and longitudes, in degrees, of four points that are to be on the edges of the rectangular map. If a cylindrical projection is being used, the first point is assumed to be on the left edge and the second point is on the right edge. The order makes no difference for other map projections. You cannot use JLTS=5 if an entire side of the desired map is outside the limb of projection.

Note: PLIM1, PLIM2, PLIM3, and PLIM4 are two-element real arrays. If 1<=JLTS<=4, then only the first element of each array is used.

MOD (IABS(JGRD), 1000)

Integer, Input---The value, in degrees, of the interval at which lines of latitude and longitude are to be plotted. If the given interval is zero, grid lines and labels are not plotted. If JGRD is less than zero, the perimeter is not plotted. Set JGRD to -1000 to suppress both grid lines and perimeter; set JGRD to +1000 to suppress the grid lines, but leave the perimeter. The value -0 may have a meaning on some computers, but should be avoided; use -1000 instead.

IOUT

Integer, Input---The outline flag determines which geopolitical boundaries are drawn:

0 Suppress US state outlines

-1 Plot US state outlines, but not continental outlines

+1 Plot US state outlines and continental outlines

<=-2 Do not plot any outlines

+2 Plot continental outlines, no US outlines

3 Plot US state outlines, no others

4 Plot continental outlines, international outlines, and US state outlines

>4 Plot continental outlines and international outlines, but no US outlines

In past versions of this software, the sign of IOUT specified whether or not a line of text was to be written on the print output. This usage is no longer valid.

IDOT

Integer, Input---The dotted outline flag takes the following values:

0 Continuous outlines

1 Dotted outlines

IERR

Integer, Output---A nonzero value on return indicates that an error has occurred.

Exercises

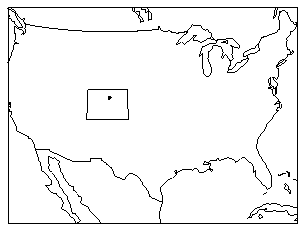

• 1. Given that Boulder, Colorado has a latitude of 40.00 and a longitude of 105.15, draw a satellite projection centered above Boulder.


Mp 1.8 What calls do I need to get my Ezmap plot?

Ezmap functional outline

--------------------------------------------------------------
 *  **  1.  Open GKS
        2.  Define position on plotter frame
 *  **  3.  Define map projection
 *  **  4.  Choose map limits
 *  **  5.  Choose desired political boundaries
 *      6.  Initialize Areas
 *  **  7.  Initialize Ezmap
 *      8.  Add geographic boundaries (or outlines) to area map
        9.  Draw geographic labels
        10.  Draw points and lines on your map
        11.  Draw desired latitude and longitude lines
 *      12.  Fill desired areas
    **  13.  Draw geographic outlines
 *  **  14.  Call FRAME
 *  **  15.  Close GKS
--------------------------------------------------------------

** Steps needed for a simple black-and-white map.

Mp 1.9 Ezmap parameters: What they do and how to use them

Synopsis

CALL MPGETC (PNAM, CVAL)
CALL MPGETI (PNAM, IVAL)
CALL MPGETR (PNAM, RVAL)
CALL MPSETC (PNAM, CVAL)
CALL MPSETI (PNAM, IVAL)
CALL MPSETR (PNAM, RVAL)
CALL MAPSAV (INFO)
CALL MAPRST (INFO)

Routines

MPGETC

Retrieves character parameter information.

MPGETI

Retrieves integer parameter information.

MPGETR

Retrieves real parameter information.

MPSETC

Sets character parameter information.

MPSETI

Sets integer parameter information.

MPSETR

Sets real parameter information.

MAPSAV

Saves all user-settable Ezmap parameter information to a file.

MAPRST

Retrieves all user-settable Ezmap parameter information from a file in which MAPSAV has saved the information.

Arguments

PNAM

Character expression, Input or Output---The name of the parameter that you want to set or retrieve. Two-character parameter names appear in examples and discussions in place of PNAM. The parameter names and their meanings are enclosed in single quotation marks in the Fortran code to ensure that they are treated as character expressions rather than real or integer variables. Only the first two characters within the quotation marks are examined.

CVAL

Character expression, Input or Output---A character value to be set or retrieved.

IVAL

Integer, Input or Output---An integer value to be set or retrieved.

RVAL

Real, Input or Output---A real value to be set or retrieved.

INFO

Integer, Input or Output---A unit number for a single unformatted record.

Discussion

Mp 2. Getting set up

Ezmap functional outline

------------------------------------------------------------
      1.  Open GKS
   *  2.  Define position on plotter frame
   *  3.  Define map projection
   *  4.  Choose map limits
   *  5.  Choose desired political boundaries
      6.  Initialize Areas
   *  7.  Initialize Ezmap
      8.  Add geographic boundaries (or outlines) to area map
      9.  Draw geographic labels
      10.  Draw points and lines on your map
      11.  Draw desired latitude and longitude lines
      12.  Fill desired areas
      13.  Draw geographic outlines
      14.  Call FRAME
      15.  Close GKS
------------------------------------------------------------

Mp 2.1 Positioning the plot in the frame

Positioning your plot on the plotter frame

Code segment from cmppos.f

1       CALL MAPPOS (0.5, 1.0, 0.0, 0.5)
2       CALL MAPDRW

Synopsis

CALL MAPPOS (XVPL, XVPR, YVPB, YVPT)

Arguments

XVPL

Real, Input---The position of the left edge of the area in which the viewport is to be positioned, in Normalized Device Coordinates (NDCs). 0.0<=XVPL<=1.0. The default is .05.

XVPR

Real, Input---The position of the right edge of the area in which the viewport is to be positioned, in NDCs. 0.0<=XVPR<=1.0. The default is .95.

YVPB

Real, Input---The position of the bottom edge of the area in which the viewport is to be positioned, in NDCs. 0.0<=YVPB<=1.0. The default is .05.

YVPT

Real, Input---The position of the top edge of the area in which the viewport is to be positioned, in NDCs. 0.0<=YVPT<=1.0. The default is .95.

Discussion

Line 1 of the cmppos.f code segment sets the left, right, bottom, and top of the viewport so that it is located in the lower left corner of the plotter frame.

Exercises

• 1. Using the cmppos example, move the plot to the center of the plotter frame, but keep it the same size.


Mp 2.2 Choosing your map projection

To specify the projection you want, call the MAPROJ routine.

Examples of different map projections

Code segment from mpex05.f

1       CALL MAPPOS (.5125, .73125, .63125, .85)
2       CALL MAPROJ ('OR', 0., 0., 0.)
3       CALL MAPDRW

Synopsis

CALL MAPROJ (JPRJ, PLAT, PLON, ROTA)

Arguments

JPRJ

Character expression, Input---Specifies the desired projection type, as follows:

LC
Lambert conformal conic with two standard parallels

ST
Stereographic

OR
Orthographic. The Ezmap parameter SA will be zeroed. See the next module.

LE
Lambert equal-area

GN
Gnomonic

AE
Azimuthal equidistant

SV
Satellite view. If Ezmap parameter SA<=1., it will be reset to 6.631 (the value for a satellite in a geosynchronous orbit).

CE
Cylindrical equidistant

ME
Mercator

MO
Mollweide-type

PLAT, PLON, and ROTA

Real, Input---Angular quantities, in degrees; their usage depends on the value of JPRJ:

JPRJ<>LC
PLAT and PLON define the latitude and longitude of the point on the globe that projects to the origin of the u/v plane. This is the center of the projection, not the center of the map. 90.<=PLAT<=+90., with positive values in the northern hemisphere and negative values in the southern. 180.<=PLON<=+180., with positive values to the east of Greenwich, England, and negative values to the west. ROTA is the angle between the v axis and north at the origin. It is taken to be positive if the angular movement from north to the v axis is counterclockwise, otherwise ROTA is negative. If the origin is at the north pole, "north" is taken to be in the direction of PLON+180. If the origin is at the south pole, "north" is taken to be in the direction of PLON. For cylindrical projections, the axis of the projection is parallel to the v axis.

JPRJ=LC
PLON defines the central meridian of the projection, and PLAT and ROTA define the two standard parallels. If PLAT=ROTA, the simpler conic projection, with one standard parallel, is used. For more information, refer to the drawing in module "Mp 1.4 Description of projections: Conic."

Discussion

Line 1 of the mpex05.f code segment sets the viewport so that the map is drawn in the upper center of the screen. Line 2 chooses an orthographic projection and centers it on latitude 0 and longitude 0, which is just off the west coast of North Africa. Line 3 draws the map projection.

Exercises

• 1. Using the cezmap1 example, draw a cylindrical equidistant map with straight grid lines.

• 2. Copy cezmap1.f to your own file, and name it cezmap.f. You will use this file in subsequent exercises to build a customized simple map-drawing routine.


Mp 2.3 Choosing your map projection: Satellite view

The satellite projection

Code segment from cmpsat.f

1       CALL MAPROJ ('SV', 40., 10., 0.)
2       CALL MPSETR ('SA - SATELLITE VIEW DISTANCE', 2.)
3       CALL MPSETR ('S1 - SATELLITE ANGLE 1', 10.)
4       CALL MPSETR ('S2 - SATELLITE ANGLE 2', 15.)
5       CALL MAPDRW

Synopsis

CALL MPSETR ('SA', sa)
CALL MPSETR ('S1', s1)
CALL MPSETR ('S2', s2)

Arguments

SA

Real---Produces a SAtellite view if SA>1.0, otherwise, you get an orthographic projection. SA is the distance of the satellite from the center of the earth, measured in earth radii. If S1=0 as SA approaches infinity, the satellite view projection approaches the orthographic projection. SA=0.0 by default.

S1

Real---Satellite angle 1 measures the angle, in degrees, between the line from the satellite to the center of the earth and the line of sight of the satellite. Used only when SA is greater than 1. S1=0.0 by default.

S2

Real---Satellite angle 2. Let the case where S1=S2=0 be called the basic satellite view. If S1<>0.0, then S2 specifies the angle, in degrees, from the positive u axis of the basic satellite view counterclockwise to the line OP, where O is the origin of the basic view, and P is the projection on the basic view, of the desired line of sight from the satellite. When S1 and S2 are not equal to zero, the portion of the earth projected remains the same, but the edge of the part of the u/v plane covered by the projection is an ellipse, a parabola, or a hyperbola with an axis at an angle S2 to the u axis. Used only when SA>1. S2=0.0 by default.

Discussion

If the basic satellite view is desired, it is not necessary for the user to set either S1 or S2. However, to get a satellite view instead of an orthographic projection, it is necessary to set SA>1.0.

Line 1 of the cmpsat.f code segment sets up the projection to give us a reasonably undistorted view of the Mediterranean. Line 2 sets the satellite at two earth radii distant (roughly 4000 miles out). Lines 3 and 4 set the viewing angle to be slightly off of straight down, and line 5 draws our map.

Exercises

• 1. Beijing, China is at roughly latitude 39 and longitude 116. Draw a satellite view from right over the city, assuming that the satellite is 2.5, 5, and 20 earth radii away. Also for each of these distances, set S1=30.0 and 60.0, and S2=40.0.


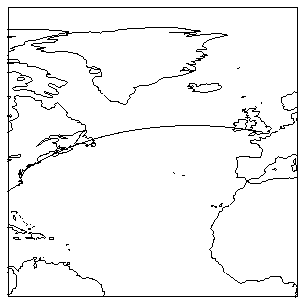

Mp 2.4 Choosing map outlines to be drawn

Political outlines over Europe

Code segment from cmpou.f

1       DATA PLIM1 /30., 0./
2       DATA PLIM2 /-15., 0./
3       DATA PLIM3 /60., 0./
4       DATA PLIM4 /30., 0./
5       CALL MPSETC ('OU - OUTLINE DATA FLAG', 'PO')
6       CALL MAPROJ ('ME', 0., 0., 0.)
7       CALL MAPSET ('CO', PLIM1, PLIM2, PLIM3, PLIM4)
8       CALL MAPINT
9       CALL MAPLOT

Synopsis

CALL MPSETC ('OU', string)

Arguments

OU

Character expression---the OUtline parameter tells which set of outline data to use:

NO
No outlines

CO
Continental outlines (the default)

US
US state outlines

PO
Continental and political (by country) outlines

PS
US state outlines, country outlines, and continental outlines

Discussion

Although state outlines for the US are available, major geographic features like rivers and mountains, and political features like the provinces in other countries are not available with NCAR Graphics at this time. We hope to incorporate this information into one of the future releases of the software.

Exercises

• 1. Using the cmpou example, try drawing no political boundaries.

• 2. Using your version of cezmap.f (see Mp 2.2 exercises), add a parameter to the cezmap subroutine calling sequence so that you can choose your outline dataset outside cezmap. Compare your results to cezmap2.f.


Mp 2.5 Setting limits for the projection

Setting limits on your map projection

Figure 1  Figure 2

Figure 3

Code segment from cmpou.f

1       DATA PLIM1 /30., 0./
2       DATA PLIM2 /-15., 0./
3       DATA PLIM3 /60., 0./
4       DATA PLIM4 /30., 0./
5       CALL MAPROJ ('ME', 0., 0., 0.)
6       CALL MAPSET ('CO', PLIM1, PLIM2, PLIM3, PLIM4)
7       CALL MAPINT
8       CALL MAPLOT

Synopsis

 CALL MAPSET (JLIM, PLIM1, PLIM2,
+ PLIM3, PLIM4)

Arguments

JLIM

Character expression, Input---Specifies how to choose the rectangular limits of the map to be drawn. JLIM also determines the meaning of PLIM1, PLIM2, PLIM3, and PLIM4, which are two-element real arrays. JLIM takes one of the following values:

MA
The maximum useful area produced by the projection is plotted. PLIM1, PLIM2, PLIM3, and PLIM4 are not used.

CO
The points (PLIM1(1), PLIM2(1)) and (PLIM3(1), PLIM4(1)) represent opposite corners of the map. PLIM1 and PLIM3 are latitudes, in degrees. PLIM2 and PLIM4 are longitudes, in degrees. If a cylindrical projection is being used, the first point is assumed to be on the left edge of the map and the second point is on the right edge. The order makes no difference for other map projections. CO cannot be used if any two adjacent corners of the desired map are outside the limb of projection, hence CO can only be used in cases similar to Figure 1 in the illustration.

LI
PLIM1(1), PLIM2(1), PLIM3(1), and PLIM4(1) specify the minimum value of u, the maximum value of u, the minimum value of v, and the maximum value of v, respectively. Knowledge of the projection equations (see modules Mp 1.4 through Mp 1.6) is necessary for using this option correctly. LI is the only option that can be used in Figure 3 of the illustration "Setting limits on your map projection."

AN
PLIM1(1), PLIM2(1), PLIM3(1), and PLIM4(1) are positive angles, in degrees, representing angular distances from a point on the map to the left, right, bottom, and top edges of the map, respectively. For most projections, these angles are measured with the center of the earth at the vertex and represent angular distances from the point that projects to the origin of the u/v plane. For a satellite view projection, these angles are measured with the satellite at the vertex and represent angular deviations from the line of sight. Angular limits are particularly useful for polar projections and for the satellite view projection; they are not appropriate for the Lambert conformal conic projection and an error results if you attempt to use JLIM=AN with JPRJ=LC.

PO
PLIM1, PLIM2, PLIM3, and PLIM4 are two-element real arrays giving the latitudes and longitudes, in degrees, of four points that are to be on the edges of the rectangular map. If a cylindrical projection is being used, the first point is assumed to be on the left edge and the second point is on the right edge. The order makes no difference for other map projections. PO cannot be used if an entire side of the desired map is outside the limb of projection, as in Figure 3 in the illustration; it can be used in cases like Figure 2.

Discussion

In Figure 1 of the cmpou example, JLIM can be set to CO, PO, or LI. However, CO won't work in Figure 2 because one of the necessary corners of specification is outside the projected map area. In Figure 3, only LI works as an option because both a necessary corner and the entire side of the desired map is outside the limb of projection.

Note: Most compilers allow us to treat PLIM1 through PLIM4 as if they were reals, so we can pass in reals in the code when JLIM=MA, CO, LI, or AN.

Exercises

• 1. Using the cmpou example, set JLIM to draw the complete globe.

• 2. The continental US is approximately bounded by latitudes of 22 and 47 and longitudes of -120 and -65. Draw a map of the continental US.

• 3. Using your version of cezmap.f (from the Mp 2.2 exercises), modify it so that you can pass in the limits of your map projection. Test these limits by producing a maximal area satellite view projection. Compare your results with the cezmap3 example.


Mp 2.6 Setting map line colors

Coloring your map

Code segment from cmpclr.f

1       CALL COLOR
2       CALL MPSETC ('OU - OUTLINE DATA FLAG', 'PS')
3       CALL MPSETI ('C1 - COLOR INDEX 1 - PERIMETER', 1)
4       CALL MPSETI ('C2 - COLOR INDEX 2 - GRID', 2)
5       CALL MPSETI ('C3 - COLOR INDEX 3 - LABELS', 3)
6       CALL MPSETI ('C4 - COLOR INDEX 4 - LIMB LINE', 4)
7       CALL MPSETI ('C5 - COLOR INDEX 5 - CONTINENTAL OUTLINES', 5)
8       CALL MPSETI ('C6 - COLOR INDEX 6 - US STATE OUTLINES', 6)
9       CALL MPSETI ('C7 - COLOR INDEX 7 - COUNTRY OUTLINES', 7)
10      CALL MAPROJ ('SV', 40., -50., 0.)
11      CALL MPSETR ('SA - SATELLITE VIEW DISTANCE', 5.)
12      CALL MAPSET ('MA', PLIM1, PLIM2, PLIM3, PLIM4)
13      CALL MAPINT

Synopsis

CALL MPSETI ('C1', ic1)
CALL MPSETI ('C2', ic2)
CALL MPSETI ('C3', ic3)
CALL MPSETI ('C4', ic4)
CALL MPSETI ('C5', ic5)
CALL MPSETI ('C6', ic6)
CALL MPSETI ('C7', ic7)

Arguments

--------------------------------
Parameter  Type     Area of
                    effect
--------------------------------
C1         Integer  Perimeter
C2         Integer  Grid (lat/
                    lon lines)
C3         Integer  Labels
C4         Integer  Limb line
C5         Integer  Continental
                    outlines
C6         Integer  US state
                    outlines
C7         Integer  Country
                    outlines
--------------------------------

Discussion

If you wanted to make the entire map the same color, you could set the polyline and text colors using the GKS calls GSPLCI and GSTXCI, and not set Ezmap parameters C1 through C7.

Exercises

• 1. Using the cmpclr example, change the grid lines to aqua and the continent lines to yellow.

• 2. Using your version of cezmap.f (from the Mp 2.2 exercises), change line colors to values you select.


Mp 2.7 Controlling Ezmap lines

Setting each Ezmap line pattern

Code segment from cmpusr.f

1       CALL MAPROJ ('SV', 40., 10., 0.)
2       CALL MPSETR ('SA - SATELLITE VIEW DISTANCE', 5.)
3       CALL MPSETC ('OU - OUTLINE DATA FLAG', 'PO')
4       CALL MAPDRW
5
6       SUBROUTINE MAPUSR (IPRT)
7 C 1110000011100000
8       IF (IPRT .EQ. 1) CALL DASHDB (57568)
9 C 1111111100000000
10      IF (IPRT .EQ. 2) CALL DASHDB (65280)
11C 0100110001110000
12      IF (IPRT .EQ. 4) CALL DASHDB (19568)
13C 1111000011110000
14      IF (IPRT .EQ. 5) CALL DASHDB (61680)
15C 1110010011100100
16      IF (IPRT .EQ. 6) CALL DASHDB (58596)
17C 010101010101010101
18      IF (IPRT .EQ. 7) CALL DASHDB (21845)
19      RETURN
20      END

Synopsis

SUBROUTINE MAPUSR (IPRT)

Arguments

MAPUSR

Subroutine---This Ezmap subroutine is called just before and just after each portion of the map is drawn. The default version of MAPUSR does nothing, but you can modify it to control how Ezmap draws lines.

IPRT

Integer, Input---If positive, this variable specifies which part of the map is about to be drawn with these values:

1 Perimeter

2 Grid

3 Labels

4 Limb line

5 Continental outlines

6 US state outlines

7 International outlines

A negative value for IPRT indicates that part of the map has been drawn.

Discussion

Because characters are drawn using the GKS routine GTX, not the Dashline utility, do not attempt to set a dashed line for them in MAPUSR.

This version of MAPUSR uses the dash pattern option to draw the various parts of the map. However, if you set the dotted outline flag DO nonzero to specify dotted outlines, this version of MAPUSR would have no effect.

Exercises

• 1. Modify MAPUSR to change the line colors in the cmpusr example.


Mp 2.8 Controlling geographic and political outlines

Removing visual clutter

Code segment from mpex03.f

1       SUBROUTINE MAPEOD (NOUT, NSEG, IDLS, IDRS, NPTS, PNTS)
2       DIMENSION PNTS (*)
3       IF (IDLS .NE. 2 .AND. IDRS .NE. 2) NPTS=0
4       IF (IDLS .NE. 1 .AND. IDRS .NE. 1 .AND.
       + IDLS .NE. 3 .AND. IDRS .NE. 3 .AND.
       + IDLS .NE. 11 .AND. IDRS .NE. 11 .AND.
       + IDLS .NE. 79 .AND. IDRS .NE. 79 .AND.
       + IDLS .NE. 99 .AND. IDRS .NE. 99 .AND.
       + IDLS .NE. 104 .AND. IDRS .NE. 104 .AND.
       + IDLS .NE. 107 .AND. IDRS .NE. 107 .AND.
       + IDLS .NE. 163 .AND. IDRS .NE. 163)      NPTS=0
5       RETURN
6       END

Synopsis

  CALL MAPEOD (NOUT, NSEG, IDLS,
+ IDRS, NPTS, PNTS)

Arguments

NOUT

Integer, Input---The number of the outline dataset from which the segment is taken. The following table shows the numbers specifying the NOUT dataset and gives the outline type and outline name:

----------------------------------------
Number  Name  Contents
----------------------------------------
1       CO    Continental outlines only
2       US    US state outlines only
3       PS    Continental, US state,
              and international outlines
4       PO    Continental and interna
              tional outlines
----------------------------------------

NSEG

Integer, Input---The number of the segment within the outline dataset. The maps in the mpex09 example show segment numbers for the outline dataset CO; you may modify this program to produce maps showing segment numbers for any outline dataset.

IDLS, IDRS

Integer, Input---Identifiers for the areas to the left and right, respectively, of the segment. (Left and right are defined from the standpoint of a viewer standing at point 1 of the segment and looking toward point 2.) For a complete list of area identifiers, see section "Mp 6. Table of Ezmap area identifiers."

NPTS

Integer, Input---The number of points defining the outline segment, when entering subroutine MAPEOD. NPTS may be zeroed by MAPEOD to suppress plotting of the segment on the map.

PNTS(NPTS)

Real array, Input---PNTS(1) and PNTS(2) are the latitude and longitude of the first point, PNTS(3) and PNTS(4) are the latitude and longitude of the second point, . . . and PNTS(2*NPTS1) and PNTS(2*NPTS) are the latitude and longitude of the last point. All values are in degrees. Longitudes are all between 180 and +180, and no segment crosses the meridian at 180 (+180) degrees.

Discussion

MAPEOD is called by Ezmap to examine each segment in an outline dataset just before it is plotted. The default version does nothing. The mpex03, mpex05, and mpex09 examples all contain versions of MAPEOD that you might find useful.

Mp 2.9 Rectangular and elliptical perimeters

Map without perimeter

Code segment from cmpel.f

1       CALL MAPROJ ('SV', 40., 10., 0.)
2       CALL MPSETR ('SA - SATELLITE VIEW DISTANCE', 5.)
3       CALL MPSETC ('OU - OUTLINE DATA FLAG', 'PO')
4       CALL MPSETI ('PE - PERIMETER FLAG', 0)
5       CALL MPSETI ('EL - ELLIPTICAL PERIMETER FLAG', 1)

Synopsis

CALL MPSETI ('PE', ipe)
CALL MPSETI ('EL', iel)

Arguments

PE

Integer---Draws a PErimeter if nonzero. PE<>0 by default.

EL

Integer---If nonzero, draw only that part of the map inside an ELlipse inscribed within the normal rectangular perimeter. This is particularly appropriate for use with azimuthal projections and angular limits specifying a square, in which case the ellipse becomes a circle. This parameter works for any map. EL=0 by default.

Discussion

An "ellipse" is a particular kind of closed curve as defined by any plane geometry text.

A "limb line" is that line in the Ezmap projection plane separating points into which some point on the globe projects from points into which no point on the globe projects. For example, when you are using an orthographic projection, the visible side of the globe maps into the interior of a circle of radius 1 and centered at the origin; the "limb" of an orthographic projection is therefore that circle. Depending on the projection being used, the "limb lines" may be straight lines, circles, ellipses, parabolas, or hyperbolas. Limb lines can also be complicated curves (sometimes defined by means of a function and sometimes defined by means of a table of X/Y coordinates defining a polygon) for projections not offered by Ezmap.

Lines 1 through 3 of the cmpel.f code segment set up the satellite map projection. Lines 4 and 5 turn off perimeter drawing. Examine the plot to see the places where Ezmap has not drawn a dividing line between a geographical outline and the background; this occurs because PE has been turned off.

Exercises

• 1. Using the cmpel example, draw a perimeter around the map.

• 2. Using the cmpitm example, turn on the EL option before the call to cmpmsk, and notice the difference it makes in the plot.

• 3. Using your own version of cezmap.f (from the Mp 2.2 exercises), set the perimeter and ellipse options.


Mp 2.10 Saving and retrieving Ezmap parameters

Synopsis

CALL MAPRS
CALL MAPSAV (IUNIT)
CALL MAPRST (IUNIT)

Arguments

MAPRS

Occasionally, you may want to re-execute the call to SET that was done for you by your last call to MAPINT. MAPRS does this. You might use this when you plot user lines over a map generated in a different overlay (such as when using a Gflash buffer), and when the system plot package does not reside in an outer overlay.

MAPSAV(IUNIT)

Saves current state of Ezmap to a file by writing, on the Fortran unit specified by IUNIT, the current values of all the user-settable parameters. IUNIT is the number of a Fortran unit to which a single unformatted record is to be written. You must position this unit; MAPSAV does not rewind it, either before or after writing the record.

MAPRST(IUNIT)

Restores a previous state of Ezmap saved by an earlier call to MAPSAV by reading, from the Fortran unit specified by IUNIT, values of all user-settable parameters, and then executing MAPINT. IUNIT is the number of a Fortran unit from which a single unformatted record is to be read. You must position this unit; MAPRST does not rewind it, either before or after reading the record.

Mp 3. Simple maps

You need fewer steps to produce simple black-and-white maps than you do when you use the Areas utility for maps that require masking and filling.

Simple map functional outline

-----------------------------------------------
   1.  Open GKS
   2.  Define position on plotter frame
   3.  Define map projection
   4.  Choose map limits
   5.  Choose desired political boundaries
   6.  Initialize Ezmap
   7.  Draw geographic labels
   8.  Draw points and lines on your map
   9.  Draw desired latitude and longitude lines
   10.  Draw geographic outlines
   11.  Call FRAME
   12.  Close GKS
-----------------------------------------------

Mp 3.1 Initializing Ezmap

Initializing a map

Code segment from cmpgrd.f

1       CALL COLOR
2       CALL MPSETC ('OU - OUTLINE DATA FLAG', 'PO')
3       CALL MAPROJ ('SV', 40., -50., 0.)
4       CALL MPSETR ('SA - SATELLITE VIEW DISTANCE', 5.)
5       CALL MAPSET ('MA', PLIM1, PLIM2, PLIM3, PLIM4)
6       CALL MAPINT

Synopsis

CALL MAPINT

Discussion

You must call MAPINT to initialize the Ezmap utility after calling MAPPOS, MAPROJ, or MAPSET.

Currently, it is okay to call MAPINT many times. You can check the flag IN (which may be retrieved by a call to MPGETI) to determine whether or not a call to MAPINT is required at a given time. You can change internal parameters such as C1, OU, LA, and so on either before or after a call to MAPINT, but for consistency with Conpack, we set Ezmap parameters before initialization.

Mp 3.2 Grids: Drawing latitude and longitude lines

Grid spacing

Code segment from cmpgrd.f

1       CALL COLOR
2       CALL MPSETC ('OU - OUTLINE DATA FLAG', 'PO')
3       CALL MPSETI ('C2 - COLOR INDEX 2 - GRID', 2)
4       CALL MPSETI ('C4 - COLOR INDEX 4 - LIMB LINE', 2)
5       CALL MAPROJ ('SV', 40., -50., 0.)
6       CALL MPSETR ('SA - SATELLITE VIEW DISTANCE', 5.)
7       CALL MAPSET ('MA', PLIM1, PLIM2, PLIM3, PLIM4)
8       CALL MPSETR ('GR - GRID SPACING', 10.)
9       CALL MPSETR ('GD - GRID DRAWING RESOLUTION', 10.)
10      CALL MAPINT
11      CALL MAPGRD

Synopsis

CALL MPSETR ('GR', gr)
CALL MPSETR ('GD', gd)
CALL MAPGRD

Arguments

GR

Real---The GRid spacing parameter chooses the desired spacing, in degrees, of latitude and longitude lines on the globe. GR=10.0 by default.

GD

Real---The Grid Drawing resolution parameter controls how accurately the latitude and longitude lines are mapped onto the globe. GD specifies the distance in degrees between points defining a grid line. 0.001<=GD<=10. By default, GD=1.0.

Discussion

Line 8 sets the grid lines to be drawn at intervals of 10 degrees. Line 9 sets the accuracy parameter to 10 so that the map requires a minimum of CPU and plotting time.

GD sets the distance between points on each latitude and longitude curve. By setting GD=10 degrees, we are setting the grid lines so that they may not be extremely accurate between calculated points. However, the first exercise below shows that the resulting difference in the curves is reasonably small (knowing that CPU time and CGM size both increase rapidly as GD gets smaller). Line 10 initializes Ezmap, and line 11 draws the grid lines and the limb line (the line around the globe).

If you plan to use idt to zoom in on an area one degree across, then you may want to draw the grid lines using points that are closer together on the globe; this increases the accuracy with which those lines are projected on the map.

Exercises

• 1. Using the UNIX command time, run the cmpgd example with GD=.001, and again with GD=1.0. What is the difference in CPU time on your machine? Plot the two plots on paper and compare their differences.

• 2. Using cmpgd.f, change the grid spacing to 20 degrees.

• 3. Using your own version of cezmap.f (from the Mp 2.2 exercises), add grid spacing to your subroutine call so that you can change it from your main program.


Mp 3.3 Grids: Dash patterns

Dash patterns in Ezmap

Code segment from cmpdd.f

1       CALL MPSETR ('GR - GRID SPACING', 10.)
2       CALL MPSETR ('GD - GRID DRAWING RESOLUTION', 10.)
3       CALL MPSETI ('DA - GRID DASHLINE PATTERN', 64764)
4       CALL MAPINT
5       CALL MAPGRD

Synopsis

CALL MPSETI ('DA', ida)

Arguments

DA

Integer---The grid DAshline parameter sets a dashed line pattern using the same interface as DASHDB. Construct a 16-bit binary number using 0s to represent blanks and 1s to represent dots or dashes, then convert to base 10. (For example, 0101010101010101 becomes 21845, which produces the dashed line used as the default grid pattern.)

Discussion

Exercises

• 1. Using the cmpdd example, make dash patterns use the following two sequences (parentheses enclose the spaces, they are not part of the dash pattern):


(- - -   - - -   )
(---  ---  )

Mp 3.4 Labeling

A labeled map

Code segment from cmplbl.f

1       CALL COLOR
2       CALL MPSETC ('OU - OUTLINE DATA FLAG', 'PO')
3       CALL MPSETI ('C2 - COLOR INDEX 2 - GRID', 2)
4       CALL MPSETI ('C4 - COLOR INDEX 4 - LIMB LINE', 2)
5       CALL MPSETI ('C1 - COLOR INDEX 1 - PERIMETER', 1)
6       CALL MPSETI ('C3 - COLOR INDEX 3 - LABELS', 1)
7       CALL MAPROJ ('SV', 40., -50., 0.)
8       CALL MPSETR ('SA - SATELLITE VIEW DISTANCE', 5.)
9       CALL MAPSET ('MA', PLIM1, PLIM2, PLIM3, PLIM4)
10      CALL MPSETI ('LA - MERIDIAN/POLE LABEL FLAG', 1)
11      CALL MPSETI ('LS - LABEL SIZE', 40)
12      CALL MAPINT
13      CALL MAPGRD
14      CALL MAPLBL

Synopsis

CALL MPSETI ('LA', ila)
CALL MPSETI ('LS', ils)
CALL MAPLBL

Arguments

LA

Integer---The meridian/pole LAbel flag directs MAPLBL to draw labels at the prime meridian, international dateline, poles, and equator when LA<>0. When LA=0, no labels are drawn. The default is for labels to be drawn.

LS

Integer---The Label Size parameter controls label size using the formula NDC=LS/1024, where NDC is the size in NDCs, and LS is the value given to the LS parameter. The special values 0, 1, 2, and 3 produce labels sized at 0.008, 0.012, 0.016, and 0.024 NDCs, respectively. By default, LS=1 (0.012 NDCs).

Discussion

Line 10 ensures that labels are drawn, and line 11 sets labels to be about 0.040 NDCs in size. Line 12 initializes Ezmap, line 13 draws the grid and limb lines, and line 14 draws the label and perimeter.

If LA is turned off, MAPLBL won't draw any labels. MAPLBL is also responsible for drawing the perimeter, if desired (when PE<>0). The cmplbl example uses white to show things drawn by MAPLBL, and green to show things drawn by MAPGRD.

Exercises

• 1. Using the cmplbl example, turn off drawing of the perimeter.

• 2. Using the cmplbl example, set the size of the labels to the default value, but don't set LS=1.

• 3. Using your own version of cezmap.f (from the Mp 2.2 exercises), set up your favorite label options.


Mp 3.5 Drawing political and geographic outlines

Drawing continental outlines

Code segment from cmplot.f

1       CALL COLOR
2       CALL MPSETC ('OU - OUTLINE DATA FLAG', 'PO')
3       CALL MPSETI ('C5 - COLOR INDEX 5 - CONTINENTAL OUTLINES', 5)
4       CALL MPSETI ('C7 - COLOR INDEX 7 - COUNTRY OUTLINES', 5)
5       CALL MPSETI ('C2 - COLOR INDEX 2 - GRID', 2)
6       CALL MPSETI ('C4 - COLOR INDEX 4 - LIMB LINE', 2)
7       CALL MPSETI ('C1 - COLOR INDEX 1 - PERIMETER', 1)
8       CALL MPSETI ('C3 - COLOR INDEX 3 - LABELS', 1)
9       CALL MAPROJ ('SV', 40., -50., 0.)
10      CALL MPSETR ('SA - SATELLITE VIEW DISTANCE', 5.)
11      CALL MAPSET ('MA', PLIM1, PLIM2, PLIM3, PLIM4)
12      CALL MPSETI ('DO - DOTTED OUTLINE FLAG', 1)
13      CALL MPSETI ('DD - DISTANCE BETWEEN DOTS', 7)
14      CALL MAPINT
15      CALL MAPGRD
16      CALL MAPLBL
17      CALL MAPLOT

Synopsis

CALL MPSETI ('DO', ido)
CALL MPSETI ('DD', idd)
CALL MAPLOT

Arguments

DO

Integer---The Dotted Outline flag determines whether or not political and continental outlines are solid or dotted. By default DO=0, denoting solid outlines. When DO<>0, dotted outlines are drawn.

DD

Integer---The Distance between Dots parameter determines the space between dots in the dotted line pattern. By default, DD=12 out of 4096, or .003 NDCs. To calculate DD in NDCs, DD=INT(NDC*RE), where NDC is the distance in Normalized Device Coordinates, and RE is the resolution as set by the RE parameter.

MV

Integer---The Minimum Vector length for MAPIT parameter controls the minimum line segment length between two points. Points closer than MV to the previous point are omitted. By default, MV=4, or roughly .001 NDCs.

RE

Integer---The REsolution parameter determines the value DD is divided by to get NDCs. RE=4096 by default.

Discussion

Line 12 turns on dotted line drawing of political and continental outlines, and line 13 spaces these outline dots closer together than the dots that form the grid lines. Line 14 initializes Ezmap, and line 15 draws the grid and limb lines. Line 16 draws the labels and perimeter, and line 17 draws the magenta outlines.

By default, continental outlines are drawn using solid lines from the Dashline utility. If you set DO nonzero, the continental outlines drawn as dots by Ezmap; Dashline is not used. DD controls the distance between dots.

Note: Most users don't need the RE parameter.

Exercises

• 1. Using the cmplot example, set the dots to be 0.005 NDCs apart.

• 2. Using the cmplot example, draw solid continental outlines.


Mp 3.6 A shortcut

Plot using MAPDRW

Code segment from cmpdrw.f

1       CALL COLOR
2       CALL MPSETC ('OU - OUTLINE DATA FLAG', 'PO')
3       CALL MPSETI ('C5 - COLOR INDEX 5 - CONTINENTAL OUTLINES', 5)
4       CALL MPSETI ('C7 - COLOR INDEX 7 - COUNTRY OUTLINES', 5)
5       CALL MPSETI ('C2 - COLOR INDEX 2 - GRID', 2)
6       CALL MPSETI ('C4 - COLOR INDEX 4 - LIMB LINE', 2)
7       CALL MPSETI ('C1 - COLOR INDEX 1 - PERIMETER', 1)
8       CALL MPSETI ('C3 - COLOR INDEX 3 - LABELS', 1)
9       CALL MAPROJ ('SV', 40., -50., 0.)
10      CALL MPSETR ('SA - SATELLITE VIEW DISTANCE', 5.)
11      CALL MAPSET ('MA', PLIM1, PLIM2, PLIM3, PLIM4)
12      CALL MPSETR ('GR - GRID SPACING', 10.)
13      CALL MPSETR ('GD - GRID DRAWING RESOLUTION', 10.)
14      CALL MPSETI ('LA - MERIDIAN/POLE LABEL FLAG', 1)
15      CALL MPSETI ('LS - LABEL SIZE', 40)
16      CALL MPSETI ('DO - DOTTED OUTLINE FLAG', 1)
17      CALL MPSETI ('DD - DISTANCE BETWEEN DOTS', 7)
18      CALL MAPDRW

Synopsis

CALL MAPDRW

Discussion

Lines 12 and 13 of the cmpdrw.f code segment set grid parameters discussed in module "Mp 3.2 Grids: Drawing latitude and longitude lines." Lines 14 and 15 set label parameters discussed in the preceding module. Line 16 turns on dotted line drawing of political and continental outlines, and line 17 sets the dots closer together than gridline dots.

The shortcut occurs as line 18 calls MAPDRW. Notice that since MAPDRW calls MAPINT, calls to MAPROJ, MAPSET, and MAPPOS must be made before calling MAPDRW. Also, since MAPDRW calls MAPINT, MAPGRD, MAPLBL, and MAPLOT, parameters that affect those routines must be set before calling MAPDRW.

You can probably use MAPDRW in almost any simple map drawing. However, as shown in Ezmap section "Mp 4. Producing maps with masking or filled areas," it is often desirable to be able to call MAPINT and MAPLOT separately.

Exercises

• 1. Examine your own version of cezmap.f (from the Mp 2.2 exercises) to see if it can use MAPDRW.


Mp 4. Producing maps with masking or filled areas

Ezmap functional outline

----------------------------------------------------------
    1.  Open GKS
    2.  Define position on plotter frame
    3.  Define map projection
    4.  Choose map limits
    5.  Choose desired political boundaries
 *  6.  Initialize Areas
 *  7.  Initialize Ezmap
 *  8.  Add geographic boundaries (or outlines) to area map
 *  9.  Draw geographic labels
    10.  Draw points and lines on your map
 *  11.  Draw desired latitude and longitude lines
 *  12.  Fill desired areas
    13.  Draw geographic outlines
    14.  Call FRAME
    15.  Close GKS
----------------------------------------------------------

Mp 4.1 Color and area identifiers in Ezmap

Sample Ezmap area identifier table

Code segment from cmpmsk.f

1       SUBROUTINE MASK (XC, YC, MCS, AREAID, GRPID, IDSIZE)
2
3       INTEGER AREAID(IDSIZE), GRPID(IDSIZE), ID
4       REAL XC(MCS), YC(MCS)
5       DO 10, I=1, IDSIZE
6          IF (GRPID(I) .EQ. 1) ID = AREAID(I)
7   10  CONTINUE
8       IF ((MAPACI(ID) .EQ. 1) .AND. (MCS .GE. 2)) THEN
9          CALL CURVED (XC, YC, MCS)
10      ENDIF
11      RETURN
12      END

Synopsis

MAPACI (IDAREA)

Function

MAPACI

Integer, Function---Obtains, for a given area, a suggested color index appropriate for use in creating a color map having adjacent areas of different colors. Returns an integer between 1 and 7 inclusive.

Arguments

IDAREA

Integer, Input---Area identifier for an area defined by an area map created by MAPBLA.

Discussion

The second column contains the area identifier for the area so you can uniquely address any area in the map database. The third column shows the suggested color index for the area. These color indices are carefully chosen so that no country or state has the same color as any of its neighbors. Also note that all bodies of water like oceans and lakes have a color index of 1. This makes it easy for your program to pick out the oceans for masking purposes or to choose an appropriate color for the oceans.

In line 8 of the cmpmsk.f code segment, note that MAPACI is called as a function rather than as a subroutine. MAPACI returns an integer value that can be used to detect ocean or land masses, to set color-fill values, and for many other purposes. A complete discussion of this code segment appears in module "Mp 4.6 Grid lines with masking: Writing a masking routine."

Mp 4.2 Ezmap group identifiers

Plot drawn with vertical strips

Code segment from cmpgrp.f

1       CALL MPSETI ('VS - VERTICAL STRIPS', 9)
2       CALL MPSETC ('OU - OUTLINE DATA FLAG', OUTLN)
3       CALL MPSETR ('GR - GRID SPACING', GRD)
4       CALL MAPROJ (PROJ, PLAT, PLON, ROTA)
5       IF (PROJ .EQ. 'SV') CALL MPSETR ('SA - SATELLITE VIEW DISTANCE', 5.)
6       CALL MAPSET (JLIM, PLIM1, PLIM2, PLIM3, PLIM4)
7       CALL MAPINT

Synopsis

CALL MPSETI ('VS', ivs)
CALL MPSETI ('G1', ig1)
CALL MPSETI ('G2', ig2)

Arguments

VS

Integer---The Vertical Stripping parameter specifies the number of strips into which a plot is to be divided. Vertical strips can be created to minimize the number of points that define an area to be filled so that the plot can be drawn on limited hardware. By default, VS=1.

G1

Integer---The Group 1 parameter is the group identifier for the perimeter and the set of projected boundary lines implied by your map projection and limits.

G2

Integer---The Group 2 parameter is the group identifier for the perimeter and the boundary lines for vertical strips.

Discussion

• 1 Ezmap geographic information

• 2 Ezmap vertical strips

• 3 Conpack contour lines

• 4 Conpack vertical strips


The cmpgrp.f code segment creates a plot using nine vertical strips; this has the effect of making the areas created both smaller and simpler. Line 1 sets the number of vertical strips by giving VS the value of 9. Lines 2 through 9 then set up map drawing normally.

Exercises

• 1. Change the value of VS in cmpgrp.f, and watch how it is plotted to the screen.


Mp 4.3 Initialize Ezmap with Areas

Initializing Ezmap with Areas

Code segment from cmpmsk.f

1       EXTERNAL MASK
2       CALL MAPINT
3       CALL ARINAM (MAP, LMAP)
4       CALL MAPBLA (MAP)
5       CALL MAPGRM (MAP, XWRK, YWRK, NWRK, IAREA, IGRP, ISIZ, MASK)

Synopsis

CALL MAPINT
CALL ARINAM (MAP, LMAP)
CALL MAPBLA (MAP)

Arguments

MAP(LMAP)

Integer array, Workspace---An integer array in which an area map of the globe is to be constructed.

LMAP

Integer, Input---Length of the MAP array. LMAP is unchanged by the call.

Discussion

Although MAPINT and ARINAM have been discussed previously, they are included in the synopsis because both routines are critical to using Ezmap with Areas. As shown before, MAPINT sets up the map limits and projection, defining a set of lines that divide up the plane. ARINAM initializes the area map array. MAPBLA takes the lines defined by MAPINT and adds them to the area map, using the default of edge group 1 for geographical map outlines and the default of edge group 2 for creating a set of vertical strips. Please see the previous module for further information on setting and using Ezmap group identifiers and vertical strips.

If you set the area map too small, the error message:

ERROR 5 IN AREDAM - AREA-MAP ARRAY
OVERFLOW

Exercises

• 1. Copy cmpmsk.f into your own directory and name it cmapa.f. Set it up so that you can change parameters (such as label size, grid options, and so on) at any time. You will use cmapa.f in subsequent exercises.


Mp 4.4 Labeling

A labeled masked map

Code segment from cmplab.f

1       EXTERNAL MASK
2       CALL MPSETI ('LS - LABEL SIZE', 20)
3       CALL MAPINT
4       CALL ARINAM (MAP, LMAP)
5       CALL MAPBLA (MAP)
6       CALL MAPGRM (MAP, XWRK, YWRK, NWRK, IAREA, IGRP, ISIZ, MASK)
7       CALL MPSETI ('EL - ELLIPTICAL PERIMETER FLAG', 1)
8       CALL MAPLBL
9       CALL MAPLOT

Synopsis

CALL MAPLBL
CALL MPSETI ('LA', ila)
CALL MPSETI ('LS', ils)

Arguments

LA

Integer---The meridian/pole LAbel flag directs MAPLBL to draw labels at the prime meridian, international dateline, poles, and equator when LA<>0. When LA=0, no labels are drawn. The default is for labels to be drawn.

LS

Integer---The Label Size parameter controls label size using the formula NDC=LS/1024 where NDC is the size in NDCs, and LS is the value given to the LS parameter. The special values 0, 1, 2, and 3 produce labels sized at 0.008, 0.012, 0.016, and 0.023 NDCs, respectively. By default, LS=1 (0.012 NDCs).

Discussion

If LA is turned off, MAPLBL does not draw any labels. MAPLBL also draws the perimeter if one is specified. The perimeter parameter PE<>0 by default.

Exercises

• 1. Change the cmplbl example so no perimeter is drawn.

• 2. Using the cmplbl example, set the size of the labels to the default value but don't set LS=1.

• 3. Using your own version of cmapa.f, set up your favorite label options.


Mp 4.5 Grid lines with masking

A masked map

Code segment from cmplab.f

1       EXTERNAL MASK
2       CALL MAPINT
3       CALL ARINAM (MAP, LMAP)
4       CALL MAPBLA (MAP)
5       CALL MAPGRM (MAP, XWRK, YWRK, NWRK, IAREA, IGRP, ISIZ, MASK)
6       CALL MAPLBL
7       CALL MAPLOT

Synopsis

 CALL MAPGRM (MAP, XCS, YCS, MCS,
+ IAREA, IGRP, ISIZ, LPR)

Arguments

MAP

Integer array, Workspace---Area map initialized in ARINAM and constructed by MAPBLA.

XCS(MCS), YCS(MCS)

Real arrays, Workspace---Workspace used by MAPGRM in calls to the user-supplied routine LPR.

MCS

Integer, Input---Dimension of the arrays XCS and YCS. MCS must be greater than or equal to 2; the value 100 is suggested.

IAREA(ISIZ), IGRP(ISIZ)

Integer arrays, Workspace---To be used by MAPGRM in calls to the user-supplied routine LPR.

ISIZ

Integer, Input---Dimension of the arrays IAREA and IGRP. ISIZ must be greater than or equal to 2. If other groups of boundary lines are added to the area map (by calling MAPITA and MAPIQA or by calling AREDAM), then ISIZ must be increased by the number of such groups.

LPR

Subroutine---A user-supplied line-processing subroutine that is called once for each piece of the masked grid. Each such piece is contained in exactly one area defined by the area map. LPR must be declared external in the routine that calls MAPGRM. This subroutine is discussed in detail in the next module.

Discussion

ISIZ, the size of the group and area identifier arrays (IAREA and IGRP), is determined by how many groups of lines you have added to the area map. Remember that the first group is the geographical outline set. Other groups might include vertical stripping if you are using it, contour lines, or lines that you may want to add to the area map using the Ezmap line-drawing routines.

Lines 6 and 7 label the globe and draw continental outlines.

Mp 4.6 Grid lines with masking: Writing a masking routine

Masking grid lines

Code segment from cmpmsk.f

1       SUBROUTINE MASK (XC, YC, MCS, AREAID, GRPID, IDSIZE)
2       INTEGER AREAID(IDSIZE), GRPID(IDSIZE), ID
3       REAL XC(MCS), YC(MCS)
4       DO 10, I=1, IDSIZE
5          IF (GRPID(I) .EQ. 1) ID = AREAID(I)
6   10  CONTINUE
7       IF ((MAPACI(ID) .EQ. 1) .AND. (MCS .GE. 2)) THEN
8          CALL CURVED (XC, YC, MCS)
9       ENDIF
10      RETURN
11      END

Synopsis

 SUBROUTINE LPR (XCS, YCS, NCS,
+ IAREA, IGRP, ISIZ)
 DIMENSION XCS(*), YCS(*), IAREA(*),
+ IGRP(*)

Arguments

LPR

Subroutine---A user-supplied line-processing subroutine that is called once for each piece of the masked grid. Each such piece is contained in exactly one area defined by the area map. LPR must be declared external in the routine that calls MAPGRM. You must use the following structure when you write subroutine LPR:

 SUBROUTINE LPR (XCS, YCS, NCS,
+ IAREA, IGRP, ISIZ)
 DIMENSION XCS(*), YCS(*), IAREA(*),
+ IGRP(*)

(code to process polyline defined by XCS, YCS, IAREA, and IGRP)

RETURN
END

XCS(NCS), YCS(NCS)

Real arrays, Input---Hold the X and Y coordinates, in the fractional coordinate system, of NCS points defining a piece of the grid. These are input arrays for the subroutine LPR.

NCS

Integer, Input---Number of X and Y coordinates in the arrays XCS and YCS.

IAREA(ISIZ), IGRP(ISIZ)

Integer arrays, Input---Hold ISIZ pairs of identifiers for the area within which the piece of the polyline lies. For each value of I from 1 to ISIZ, IAREA(I) is the area identifier for the area with respect to the group of edges specified by the group identifier IGRP(I).

ISIZ

Integer, Input---Number of values in IAREA and IGRP. ISIZ is equal to the number of groups of edges that you put in the area map.

You can assume that MAPGRM has made this call:

 CALL SET (VPL, VPR, VPB, VPT,
+ VPL, VPR, VPB, VPT, 1)

This call ensures correct results if the normalized device coordinates in XCS and YCS are used in calls to such routines as the GKS line-drawing routine GPL or the Dashline routine CURVED. LPR may make its own SET call to achieve some other effect.

Discussion

By using the color identifier to pick out land values, you could draw grid lines only over land. Similarly, by looking up the area identifiers for a given country in section "Mp 6. Table of Ezmap area identifiers," you could draw grid lines either only over a given country, or over everything except a given country.

Exercises

• 1. Using cmpmsk.f, modify MASK so that it draws grid lines only over land masses.

• 2. Modify your own version of cmapa.f (from the Mp 4.3 exercises) so it draws only the grid lines that you want.


Mp 4.7 Filling areas

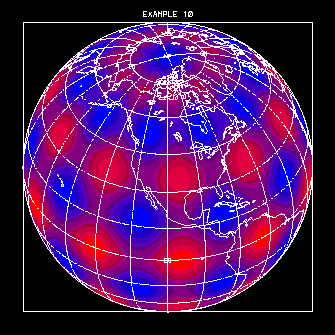

A color-filled globe

Code segment from cmpfil.f

1       CALL COLOR
2       CALL MAPINT
3       CALL ARINAM (MAP, LMAP)
4       CALL MAPBLA (MAP)
5       CALL GSFAIS (1)
6       CALL ARSCAM (MAP, XWRK, YWRK, NWRK, IAREA, IGRP, ISIZ, FILL)
7       CALL MAPGRM (MAP, XWRK, YWRK, NWRK, IAREA, IGRP, ISIZ, MASK)
8       CALL MAPLOT

Synopsis

 CALL ARSCAM (MAP, XWRK, YWRK, NWRK,
+ IAREA, IGRP, ISIZ, FILL)

Arguments

MAP

Integer array, Workspace---The area map that has been initialized by a call to ARINAM and to which edges have been added by calls to AREDAM. If you did not preprocess the area map by calling ARPRAM, ARSCAM calls it before doing anything else.

XWRK(NWRK), YWRK(NWRK)

Real arrays, Workspace---The X and Y coordinates defining the edge of a given area, for use by ARSCAM in calls to the area-processing routine APR.

NWRK

Integer, Input---Dimension of each of the arrays XWRK and YWRK. A nice size for NWRK is 1000.

IAREA(ISIZ), IGRP(ISIZ)

Integer arrays, Workspace---Each dimensioned NGRPS, for use by ARSCAM in calls to the area-processing routine APR.

ISIZ

Integer, Input---Dimension of each of the arrays IAREA and IGRP. ISIZ>=n, where n is the number of groups in the area map.

FILL

Subroutine---A user-supplied area-processing routine that is called by ARSCAM and that must be declared external in the routine that calls ARSCAM. The FILL subroutine is described in full detail in the next module.

Discussion

Line 5 sets the GKS interior fill style to "solid" to produce solid fill. Line 6 calls the Areas scan area map routine with user-supplied fill routine so that each country is filled. Line 7 draws the grid lines over water, and line 8 draws the continental and political boundaries. The order of the overlaying done by these calls is critical to produce proper results. You must call detail-drawing routines after filling, since color-fill draws over anything that might have been there previously.

Exercises

• 1. Using your own version of cmapa.f (from the Mp 4.3 exercises), set it up to fill the regions of your choice. You may also want to choose a different color table for your routine.


Mp 4.8 Filling areas: Writing a fill routine

A color-filled globe

Code segment from cmpfil.f

1       SUBROUTINE FILL (XWRK, YWRK, NWRK, IAREA, IGRP, IDSIZ)
2       DIMENSION XWRK(*), YWRK(*), IAREA(*), IGRP(*)
3       ID=0
4       DO 10, I=1, IDSIZ
5              IF (IGRP(I) .EQ. 1) ID = IAREA(I)
6   10  CONTINUE
7       IF (ID .GE. 1) THEN
8              CALL GSFACI (MAPACI(ID) + 1)
9              CALL GFA (NWRK, XWRK, YWRK)
10      ENDIF
11      RETURN
12      END

Synopsis

 SUBROUTINE FILL (XWRK, YWRK, NWRK,
+ IAREA, IGRP, NGRPS)
 DIMENSION XWRK(*), YWRK(*),
+ IAREA(*), IGRP(*)

Arguments

FILL

Subroutine---A user-supplied area-processing routine that is called by ARSCAM and that must be declared external in the routine that calls ARSCAM. The FILL subroutine must have the following form:

 SUBROUTINE FILL (XWRK, YWRK, NWRK,
+ IAREA, IGRP, NGRPS)
 DIMENSION XWRK(*), YWRK(*),
+ IAREA(*), IGRP(*)

(code to process the area defined by XWRK, YWRK, IAREA, and IGRP)

RETURN
END

XWRK(NWRK), YWRK(NWRK)

Real arrays, Input---The X and Y coordinates, in the fractional coordinate system, of NWRK points defining a polygonal area. The last of these points is a duplicate of the first. Holes in an area are traced in such a way as to maximize the probability of hardware fill working properly by using vertical lines to get to and from the holes and tracing them in the proper direction.

NWRK

Integer, Input---Number of X and Y coordinates in the arrays XWRK and YWRK. A nice starting value for NWRK is 1000.

IAREA(NGRPS), IGRP(NGRPS)

Integer arrays, Input---Hold NGRPS pairs of identifiers for the area defined by XWRK and YWRK. For each value of I from 1 to NGRPS, IAREA(I) is the area identifier for the area with respect to the group of edges specified by the group identifier IGRP(I).

NGRPS

Integer, Input---Number of values in IAREA and IGRP. NGRPS is equal to the number of groups of edges that you put in the area map.

Discussion

Lines 4 through 6 of the cmpfil.f code segment retrieve the area identifier for the geographic region by checking each element of the group array for group identifier 1, and assigning its associated area id to ID. Line 7 checks to see if the area is over the map, and if so, line 8 chooses a color index by retrieving the suggested Ezmap color using MAPACI. Line 9 fills the area.

Exercises

• 1. Use section "Mp 6. Table of Ezmap area identifiers" or the ngfile utility to determine the correct area identifier, then use the cmpfil example to change the color of Canada to be different than either the US or Russia.

• 2. Using your own version of cmapa.f (from the Mp 4.3 exercises), modify it to do color fill.


Mp 5. Points, lines, and inverse transformations

Ezmap functional outline

----------------------------------------------------------
    1.  Open GKS
    2.  Define position on plotter frame
    3.  Define map projection
    4.  Choose map limits
    5.  Choose desired political boundaries
    6.  Initialize Areas
    7.  Initialize Ezmap
    8.  Add geographic boundaries (or outlines) to area map
    9.  Draw geographic labels
 *  10.  Draw points and lines on your map
    11.  Draw desired latitude and longitude lines
    12.  Fill desired areas
    13.  Draw geographic outlines
    14.  Call FRAME
    15.  Close GKS
----------------------------------------------------------

Mp 5.1 Projecting a point onto the map

Marking up a map

Code segment from cmptra.f

1       CALL MAPDRW
3       CALL MAPTRA (40., -105.15, X, Y)
4       IF (X .NE. 1.E12) CALL POINTS (X, Y, 1, -3, 0)

Synopsis

CALL MAPTRA (RLAT, RLON, UVAL, VVAL)

Arguments

RLAT

Real, Input---The latitude of a point on the globe. RLAT must be between -90.0 and +90.0 inclusive.

RLON

Real, Input---The longitude of a point on the the globe. RLON must be between -540.0 and +540.0 inclusive. Positive longitudes are measured eastward from the Greenwich meridian, and negative longitudes are measured westward from the Greenwich meridian.

UVAL, VVAL

Real, Output---The point (UVAL, VVAL) is the point on the u/v plane into which the point with latitude RLAT and longitude RLON projects. The units of UVAL and VVAL depend on the projection.

Discussion

If the point is not projectable on the map, both routines return UVAL equal to 1.E12.

Line 1 of the cmptra.f code segment draws the map as a reminder that the map projection and limits have been set up and that the map has been drawn. Line 3 calls MAPTRA to get the user coordinates of the point. If the coordinates are on the projection, then an asterisk is drawn over Boulder, Colorado, USA. MAPTRN or MAPTRA can be called any time after MAPINT is called.

Exercises

• 1. Using a full-globe mercator projection, draw a red circle over Lhasa, Tibet (29., 91.)

• 2. Using the preceding exercise, write the city names over Beijing, China (39., 116.) and Machu Picchu, Peru (-13., -72.).


Mp 5.2 Inverse transformations

A cell array drawn with MAPTRI

Code segment from mpex10.f

1        DO 103, I=1, NCLS
2          X = CFUX (.05 + .90 * (REAL (I-1) + .5) / REAL (NCLS))
3          DO 102, J=1, NCLS
4            Y = CFUY (.05 + .90 * (REAL (J-1) + .5) / REAL (NCLS))
5            CALL MAPTRI (X, Y, RLAT, RLON)
6            IF (RLAT .NE. 1.E12) THEN
7                DVAL = .25 * (1. + COS (DTOR * 10. * RLAT)) +
        +         .25 * (1. + SIN (DTOR * 10. * RLON)) * COS (DTOR * RLAT)
8                ICRA (I,J) = MAX (2, MIN (NCLR+1, 2+INT (DVAL * REAL (NCLR))))
9            ELSE
10               ICRA (I,J) = 0
11           ENDIF
12 102     CONTINUE
13 103   CONTINUE
14       CALL GCA (CFUX(.05), CFUY(.05), CFUX(.95), CFUY(.95), 1000, 1000,
        + 1, 1, NCLS, NCLS, ICRA)
15       CALL MAPDRW

Synopsis

CALL MAPTRI (X, Y, RLAT, RLON)

Arguments

X, Y

Real, Input---The X and Y user coordinates of the point for which you want latitude and longitude values.

RLAT, RLON

Real, Output---The latitude and longitude values for a point specified in user coordinates. If RLAT=1.E12, then the point is outside the map projection.

Discussion

Lines 1 through 13 of the mpex10.f code segment pick values to fill a cell array that will be used to color the globe. In line 2, CFUX takes an X coordinate in NDCs and returns an X coordinate in user coordinates. Similarly, CFUY in line 4 takes a Y coordinate of a point in NDCs and returns a Y value in user coordinates.

Line 5 uses MAPTRI to retrieve the coordinates of the point in latitude and longitude. Since MAPTRI returns a value of RLAT=1.E12 if the point is not over a plotted portion of the globe, line 6 checks to see if the point maps onto the portion of the globe that will be plotted. If it does, then a value for the cell array is specified there. Otherwise, line 10 sets the cell array element to black. Line 14 fills the cell array, and line 15 draws the map over it.

Exercises

• 1. Modify mpex10.f to put a cell array only over the United States.


Mp 5.3 Drawing lines on a simple map

Drawing lines on your map

Code segment from cmptra.f

1       CALL MAPDRW
2       CALL MAPIT (37., -109., 0)
3       CALL MAPIT (41., -109., 1)
4       CALL MAPIT (41., -102., 1)
5       CALL MAPIT (37., -102., 1)
6       CALL MAPIT (37., -109., 1)
7       CALL MAPIQ

Synopsis

CALL MAPIT (RLAT, RLON, IFST)
CALL MAPIQ

Arguments

RLAT

Real, Input---The latitude, in degrees, of a point to which the "pen" is to be moved. RLAT must be between -90. and +90., inclusive.

RLON

Real, Input---The longitude, in degrees, of a point to which the "pen" is to be moved. RLON must be between -540. and +540., inclusive.

IFST

Integer, Input---The first point flag allows you to control whether or not line segments are drawn.

0 Do a "pen-up" move. IFST should be zero for the first point in each curve.

1 Do a "pen-down" move only if the distance from the last point to the new point is greater than MV/RE. IFST should be positive for any point after the first point in a curve.

>1 Do a "pen-down" move regardless of the distance from the last point to the new one. IFST should be positive for any point after the first point in a curve.

Discussion

The Ezmap parameter DL determines whether MAPIT draws solid lines or dotted lines. Dotted lines are drawn using calls to POINTS. Solid lines are drawn using calls to DASHD, FRSTD, and VECTD. The parameters DD and MV also affect the behavior of MAPIT. For more information on these parameters, see the descriptions in module "Mp 3.5 Drawing political and geographic outlines."

A sequence of calls to MAPIT should be followed by a call to MAPIQ to flush its buffers before a STOP, a CALL FRAME, or a call to change the color index. Points in two contiguous pen-down calls to MAPIT should not be far apart on the globe.

It doesn't matter whether you call MAPIT and MAPIQ before or after calling the map-drawing routines. However, MAPIT and MAPIQ must be called after Ezmap is initialized. In line 1 of the cmptra.f code segment, the call to MAPDRW initializes Ezmap.

Line 2 tells MAPIT to start drawing at the lower left corner of Colorado. Lines 3 through 6 draw the four sides of the state, and line 7 quits drawing.

Another application of MAPIT appears in the next module.

Exercises

• 1. Using the cmpsup example, draw an X across the face of the globe.


Mp 5.4 Drawing a great circle between two points

Drawing a great circle between Washington D.C. and London

Code segment from cmpgci.f

1       CALL SUPMAP (8, 0., -50., 0., 0., -80., 90., 10., 2, 0., 0, 0, IERR)
2       CALL MAPGCI (38., -77., 51., 0., 100, RLAT, RLON)
3       CALL MAPIT (38., -77., 0)
4       DO 10, I=1, 100
5              CALL MAPIT (RLAT(I), RLON(I), 1)
6   10  CONTINUE
7       CALL MAPIT (51., 0., 1)
8       CALL MAPIQ

Synopsis

 CALL MAPGCI (ALAT, ALON, BLAT,
+ BLON, NOPI, RLTI, RLNI)

Arguments

ALAT, ALON

Real, Input---The latitude and longitude of the first point to define a great circle.

BLAT, BLON

Real, Input---The latitude and longitude of the second point to define a great circle.

NOPI

Integer, Input---The number of points to be interpolated.

RLTI(NOPI), RLNI(NOPI)

Real arrays, Output---Arrays containing the latitudes and longitudes of each point interpolated along the great circle, excluding the points (ALAT, ALON) and (BLAT, BLON).

Discussion

Exercises

• 1. Given that Lhasa, Tibet is at (29., 91.), and Boulder, Colorado, USA is at (40., -105.15), draw a great circle between the two.


Mp 5.5 Adding lines to an area map

Color array over land masses

Code segment 1 from cmpita.f

1       EXTERNAL FILL
2       COMMON /DAT1/ ZDAT(M,N)
3       CALL ARINAM (MAP, IMAP)
4       CALL MAPINT
5       CALL MAPBLA (MAP)
6       DO 1, I = -90, 90, IGRD
7          DO 2, J = -180, 180 - IGRD, IGRD
8             LEFT = (J + 181) * 1000 + (I + 91)
9             CALL MAPITA (REAL(I), REAL(J),      0, MAP, 5, LEFT, 0)
10            CALL MAPITA (REAL(I), REAL(J+IGRD), 1, MAP, 5, LEFT, 0)
11            CALL MAPIQA (MAP, 5, LEFT, 0)
12   2     CONTINUE
13   1  CONTINUE
14      DO 3, I = -180, 180, IGRD
15         DO 4, J = -90, 90 - IGRD, IGRD
16            CALL MAPITA (REAL(J),      REAL(I), 0, MAP, 5, 0, 0)
17            CALL MAPITA (REAL(J+IGRD), REAL(I), 1, MAP, 5, 0, 0)
18            CALL MAPIQA (MAP, 5, 0, 0)
19   4     CONTINUE
20   3  CONTINUE
21      CALL GSFAIS(1)
22      CALL ARSCAM (MAP, XWRK, YWRK, NWRK, IAREA, IGRP, 5, FILL)

Synopsis

 CALL MAPITA (RLAT, RLON, IFST, MAP,
+ IDGRP, IDLEFT, IDRIT)
 CALL MAPIQA (MAP, IDGRP, IDLEFT,
+ IDRIT)

Arguments

RLAT

Real, Input---Latitude of a point along the line.

RLON

Real, Input---Longitude of a point along the line.

IFST

Integer, Input---A flag that is set to zero for the first point of a line and nonzero for all other points of the line.

MAP

Integer array, Workspace---An integer array containing an area map.

IDGRP

Integer, Input---Group identifier for the line.

IDLEFT

Integer, Input---Area identifier for the area to the left of the line.

IDRIT

Integer, Input---Area identifier for the area to the right of the line.

Discussion

Area identifiers used for an entire curve are not necessarily the ones used for each call to MAPITA or MAPIQA. Inside the two routines is a 100-point buffer. Whenever the buffer fills or MAPIQA is called, the buffer is dumped, and the current values of IDGRP, IDLEFT, and IDRIT are used. To set group and area identifiers, make sure to call MAPIQA after every call to MAPITA where you change group or area identifiers.

Lines 14 through 20 add the longitude lines to the area map, giving each area identifiers of zero. The effect of these four loops is to give each 15-degree square on the map a single nonzero area identifier. When the area map is processed, each 15-degree square is then assigned its only nonzero area identifier. This is a shortcut that could possibly leave zeros as area identifiers for squares that run into the limb of a globe projection. Line 21 sets color fill to solid, and each square is filled by calling ARSCAM in line 22.

Ideally, you would want to assign the same area identifier to all four lines that form each boxed area, and it may be necessary to do this with some projections. Line 22 calls ARSCAM to fill each square over land with a color based on a Z data value. The FILL routine is discussed on the next page.

Mp 5.5 Adding lines to an area map

Color array over land masses

Code segment 2 from cmpita.f

30      SUBROUTINE FILL (XWRK, YWRK, NWRK, IAREA, IGRP, NSIZE)
31      COMMON /DAT1/ ZDAT(M,N)
32
33      IAREA1 = -1
34      IAREA5 = -1
35      IF (NWRK .LE. 3) RETURN
36      DO 10, I=1, NSIZE
37         IF (IGRP(I) .EQ. 1) IAREA1 = IAREA(I)
38         IF (IGRP(I) .EQ. 5) IAREA5 = IAREA(I)
39  10  CONTINUE
40      IF (IAREA1 .GT. 0) THEN
41         IF (MAPACI (IAREA1) .NE. 1 .AND. IAREA5 .GT. 0) THEN
42            LAT = MOD (IAREA5, 1000)
43            I = LAT / IGRD + 1
44            LON = IAREA5 / 1000
45            J = LON / IGRD + 1
46            ICLR = INT (ZDAT (I, J)) + 1
47            CALL GSFACI (ICLR)
48            CALL GFA (NWRK-1, XWRK, YWRK)
49         ENDIF
50      ENDIF
51      RETURN
52      END

Discussion

Lines 37 and 38 check our group identifiers and retrieve the area identifiers for areas defined by the geographic map and for areas defined by our two-degree grid over the globe. Line 40 checks to see if the area is over the geographic map. Line 41 checks to see if the area is over land (it has a color index not equal to 1), and if it has a nonzero grid area identifier. If the area is over land, then lines 42 and 44 retrieve the latitude and longitude values for the area, and lines 43 and 45 retrieve the Z array indices.

Line 46 sets the color index to be the Z data value plus 1 (since the data ranges between 1 and 15 and we want to use colors 2 through 16 in our color table). You could just as easily use a different function to translate Z data values into color here. Lines 47 through 49 fill the region with the desired color.

Notice how long this program takes to execute. It is much faster to create a cell array and use MAPTRA to overlay it on a globe. For an example of this, see module "Mp 5.2 Inverse transformations."

Mp 5.6 Drawing lines masked by an area map

Masking a curve

Code segment from cmpitm.f

1       EXTERNAL MASK1
2       CALL CMPMSK ('ME', 0., -75., 0., 'PS', 'CO', PLIM1, PLIM2, PLIM3, PLIM4,
       + 2., MAP, LMAP)
3       CALL CIRCLE (25., -80., 3.5, CLAT, CLON, NPTS)
4       CALL MAPITM (CLAT(1), CLON(1), 0, MAP, XWRK, YWRK, NWRK,
       + IAREA, IGRP, NGRPS, MASK1)
5       DO 102, ICIR=2, NPTS
6             CALL MAPITM (CLAT(ICIR), CLON(ICIR), 1, MAP, XWRK, YWRK, NWRK,
       +    IAREA, IGRP, NGRPS, MASK1)
7  102  CONTINUE
8       CALL MAPIQM (MAP, XWRK, YWRK, NWRK, IAREA, IGRP, NGRPS, MASK1)

Synopsis

 CALL MAPITM (RLAT, RLON, IFST, MAP,
+ XWRK, YWRK, NWRK, IAREA, IGRP,
+ ISIZ, MASK)
 CALL MAPIQM (MAP, XWRK, YWRK, NWRK,
+ IAREA, ISIZ, MASK)

Arguments

RLAT

Real, Input---Latitude of a point along the line.

RLON

Real, Input---Longitude of a point along the line.

IFST

Integer, Input---A flag that is set to zero for the first point of a line and nonzero for all other points of the line.

MAP

Integer array, Workspace---An area map that has been constructed by calls to ARINAM and MAPBLA.

XWRK(NWRK), YWRK(NWRK)

Real arrays, Workspace---Real arrays dimensioned MCS, to be used by MAPITM in calls to the user-supplied routine MASK.

NWRK

Integer, Input---Dimension of the arrays XCS and YCS. MCS must be greater than or equal to 2; the value 100 is suggested.

IAREA(ISIZ), IGRP(ISIZ)

Integer arrays, Workspace---Integer arrays to be used by MAPITM in calls to the user-supplied routine MASK.

ISIZ

Integer, Input---Dimension of the arrays IAREA and IGRP. ISIZ>=n, where n is the number of groups in the area map.

MASK

Subroutine---A user-supplied line-processing routine that is called once for each piece of the masked line. Each such piece is contained in exactly one area defined by the area map. MASK must appear in an EXTERNAL statement in the routine that calls MAPITM. Details on how to write a masking routine are discussed in module "Mp 4.6 Grid lines with masking: Writing a masking routine," and in module "Ar 3.3 Writing a masking or line-drawing routine."

Discussion

The projection of the line segment joining two points on the globe is considered to be the straight-line segment joining the projections of the points. No attempt is made to project it as if it were a portion of a great circle, so it is a good idea to place points defining each segment closely together.

• If both endpoints of a line segment are visible, the segment is considered to be entirely visible.

• If both endpoints are invisible, the segment is considered to be entirely invisible.

• If one endpoint is visible and the other is not, a new point is interpolated at the boundary between the visible and invisible portions.


There are two types of boundaries between visible and invisible regions:

• The limb is a boundary between a projectable region and an unprojectable one. The limb may be circular, elliptical, or some other shape, depending on the projection being used. For example, an orthographic projection has as its limb a circle, centered at (0., 0.), with a radius of 1.

• The perimeter is a rectangular or elliptical boundary that is defined by the Ezmap parameters you set to specify the region you want to view.


Line 2 of the cmpitm.f code segment calls CMPMSK to draw a map with grid lines masked over land. This code has been slightly modified from the code used in cmpmsk.f. In cmpitm.f, lines 4 through 8 use a single area map both for the grid line masking and for masking the circle that is drawn by using MAPITM and MAPIQM.

Line 3 calls a routine that generates a circle on any part of the globe. Because the globe is not flat, CIRCLE generates a circle of radius RADIUS---3.5 in this case---and rotates that circle to (RLAT, RLON)---25N, 80W in this case. CIRCLE returns CLAT and CLON, two arrays that contain NPTS latitude and longitude coordinates for the desired circle.

In line 4, MAPITM calls MASK1 to determine whether or not to draw the first point in the circle. In lines 5 through 7, MAPITM again calls MASK1 to draw line segments connecting each succeeding point in the circle if those segments are not over land. Line 8 calls MAPIQM to finish the circle.

Exercises

• 1. Using the cmpitm example, draw the grid lines only over land and the circle only over water.


Mp 6. Table of Ezmap area identifiers

-----------------------------------------
Number  Name  Contents
-----------------------------------------
1       CO    Continental outlines only
2       US    US state outlines only
3       PS    Continental, US state, and
              international outlines
4       PO    Continental and interna
              tional outlines
-----------------------------------------

This table is sorted by area name to help you find the area identifiers you need. A copy of this table is also available online via the ncargfile command.

----------------------------------------------
Data  Area id  Color   Area name
 set           index
----------------------------------------------
PO    1264     3       Afghanistan
PS    906      3       Afghanistan
CO    3        2       Africa/Eurasia
CO    99       2       Africa/Eurasia
US    310      5       Alabama
PO    1014     3       Alaska
PS    450      3       Alaska
CO    5        2       Alaska---Atka Is.
PO    1008     3       Alaska---Atka Is.
PS    444      3       Alaska---Atka Is.
CO    218      2       Alaska---Attu Is.
PO    1356     3       Alaska---Attu Is.
PS    998      3       Alaska---Attu Is.
CO    20       2       Alaska---Kodiak Is.
PO    1023     3       Alaska---Kodiak Is.
PS    459      3       Alaska---Kodiak Is.
CO    13       2       Alaska---Nunivak Is.
PO    1016     3       Alaska---Nunivak Is.
PS    452      3       Alaska---Nunivak Is.
CO    9        2       Alaska---Saint
                       Lawrence Is.
PO    1012     3       Alaska---Saint
                       Lawrence Is.
PS    448      3       Alaska---Saint
                       Lawrence Is.
CO    10       2       Alaska---Umnak Is.
PO    1013     3       Alaska---Umnak Is.
PS    449      3       Alaska---Umnak Is.
CO    12       2       Alaska---Unalaska Is.
PO    1015     3       Alaska---Unalaska Is.
PS    451      3       Alaska---Unalaska Is.
PO    1200     3       Albania
PS    842      3       Albania
PO    1144     2       Algeria
PS    786      2       Algeria
PO    1158     4       Andorra
PS    800      4       Andorra
PO    1188     4       Angola
PS    830      4       Angola
PO    1187     4       Angola---exclave
                       called Cabinda
PS    829      4       Angola---exclave
                       called Cabinda
CO    1        2       Antarctica
PO    1004     7       Antarctica
PS    440      7       Antarctica
CO    72       2       Antarctica---Alex
                       ander Is.
PO    1088     7       Antarctica---Alex
                       ander Is.
PS    666      7       Antarctica---Alex
                       ander Is.
CO    83       2       Antarctica---Anvers Is.
PO    1106     7       Antarctica---Anvers Is.
PS    748      7       Antarctica---Anvers Is.
CO    36       2       Antarctica---Bear Is.
PO    1042     7       Antarctica---Bear Is.
PS    503      6       Antarctica---Bear Is.
CO    85       2       Antarctica---Brabant
                       Is.
PO    1108     7       Antarctica---Brabant
                       Is.
PS    750      7       Antarctica---Brabant
                       Is.
CO    73       2       Antarctica---Charcot
                       Is.
PO    1089     7       Antarctica---Charcot
                       Is.
PS    669      7       Antarctica---Charcot
                       Is.
CO    95       2       Antarctica---Corona
                       tion Is.
PO    1123     7       Antarctica---Corona
                       tion Is.
PS    765      7       Antarctica---Corona
                       tion Is.
CO    21       2       Antarctica---Guest Is.
PO    1024     7       Antarctica---Guest Is.
PS    460      7       Antarctica---Guest Is.
CO    94       2       Antarctica---Joinvile
                       Is.
PO    1121     7       Antarctica---Joinvile
                       Is.
PS    763      7       Antarctica---Joinvile
                       Is.
CO    92       2       Antarctica---King
                       George Is.
PO    1117     7       Antarctica---King
                       George Is.
PS    759      7       Antarctica---King
                       George Is.
CO    91       2       Antarctica---Living
                       ston Is.
PO    1116     7       Antarctica---Living
                       ston Is.
PS    758      7       Antarctica---Living
                       ston Is.
CO    14       2       Antarctica---
                       Roosevelt Is.
PO    1017     7       Antarctica---
                       Roosevelt Is.
PS    453      7       Antarctica---
                       Roosevelt Is.
CO    213      2       Antarctica---Ross Is.
PO    1351     7       Antarctica---Ross Is.
PS    993      7       Antarctica---Ross Is.
PO    1098     3       Argentina
PS    713      3       Argentina
PO    1103     3       Argentina---Tierra del
                       Fuego
PS    739      3       Argentina---Tierra del
                       Fuego
US    245      2       Arizona
US    270      5       Arkansas
CO    163      2       Australia
PO    1297     3       Australia
PS    939      3       Australia
CO    193      2       Australia---Kangaroo
                       Is.
PO    1330     3       Australia---Kangaroo
                       Is.
PS    972      3       Australia---Kangaroo
                       Is.
CO    185      2       Australia---Melville
                       and Bathurst Is.
PO    1322     3       Australia---Melville
                       and Bathurst Is.
PS    964      3       Australia---Melville
                       and Bathurst Is.
CO    200      2       Australia---Tasmania
PO    1338     3       Australia---Tasmania
PS    980      3       Australia---Tasmania
PO    1178     3       Austria
PS    820      3       Austria
CO    67       2       Bahamas
CO    68       2       Bahamas
CO    70       2       Bahamas
PO    1083     6       Bahamas
PO    1084     6       Bahamas
PO    1086     6       Bahamas
US    360      4       Bahamas---Andros
US    362      4       Bahamas---Andros
US    363      4       Bahamas---Andros
US    365      4       Bahamas---Andros
US    368      4       Bahamas---Andros
US    394      4       Bahamas---Cat Is.
US    372      4       Bahamas---Eleuthera
                       Is.
US    373      4       Bahamas---Eleuthera
                       Is.
US    374      4       Bahamas---Eleuthera
                       Is.
US    359      4       Bahamas---Grand
                       Bahama
US    366      4       Bahamas---Grand
                       Bahama
US    367      4       Bahamas---Grand
                       Bahama
US    364      4       Bahamas---Great
                       Abaco and Little
                       Abaco
US    369      4       Bahamas---Mores Is.
US    370      4       Bahamas---New Provi
                       dence Is.
PO    1276     4       Bangladesh
PS    918      4       Bangladesh
PO    1160     6       Belgium
PS    802      6       Belgium
PO    1064     2       Belize
PS    582      2       Belize
PO    1157     3       Benin
PS    799      3       Benin
PO    1277     3       Bhutan
PS    919      3       Bhutan
CO    203      2       Bismarck Archipel
                       ago---New Britain
PO    1341     3       Bismarck Archipel
                       ago---New Britain
PS    983      3       Bismarck Archipel
                       ago---New Britain
CO    205      2       Bismarck Archipel
                       ago---New Hanover
PO    1343     3       Bismarck Archipel
                       ago---New Hanover
PS    985      3       Bismarck Archipel
                       ago---New Hanover
CO    206      2       Bismarck Archipel
                       ago---New Ireland
PO    1344     3       Bismarck Archipel
                       ago---New Ireland
PS    986      3       Bismarck Archipel
                       ago---New Ireland
CO    123      1       Black Sea
PO    1217     1       Black Sea
PS    859      1       Black Sea
PO    1101     4       Bolivia
PS    734      4       Bolivia
US    223      7       Border
CO    160      2       Borneo
PO    1298     3       Borneo---Brunei
PS    940      3       Borneo---Brunei
PO    1203     6       Botswana
PS    845      6       Botswana
PO    1094     6       Brazil
PS    705      6       Brazil
PO    1211     5       Bulgaria
PS    853      5       Bulgaria
PO    1279     3       Burma
PS    921      3       Burma
PO    1221     4       Burundi
PS    863      4       Burundi
US    226      4       California
US    240      4       California---San Clem
                       ente Is.
US    234      4       California---San
                       Miguel Is.(island)
US    239      4       California---San
                       Nicholas Is.
US    241      4       California---Santa Cat
                       alina Is.
US    238      4       California---Santa
                       Cruz Is.
US    235      4       California---Santa
                       Rosa Is.
PO    1286     2       Cambodia
PS    928      2       Cambodia
PO    1171     3       Cameroon
PS    813      3       Cameroon
PO    1026     6       Canada
PS    462      6       Canada
CO    62       2       Canada---Akimiski Is.
PO    1075     6       Canada---Akimiski Is.
PS    624      6       Canada---Akimiski Is.
CO    82       2       Canada---Anticosti Is.
PO    1105     6       Canada---Anticosti Is.
PS    747      6       Canada---Anticosti Is.
CO    50       2       Canada---Axel
                       Heiberg Is.
PO    1056     6       Canada---Axel
                       Heiberg Is.
PS    535      6       Canada---Axel
                       Heiberg Is.
CO    54       2       Canada---Baffin Is.
PO    1062     6       Canada---Baffin Is.
PS    568      6       Canada---Baffin Is.
CO    25       2       Canada---Banks Is.
PO    1029     6       Canada---Banks Is.
PS    465      6       Canada---Banks Is.
CO    39       2       Canada---Bathurst Is.
PO    1045     6       Canada---Bathurst Is.
PS    509      6       Canada---Bathurst Is.
CO    65       2       Canada---Belcher Is.
PO    1080     6       Canada---Belcher Is.
PS    643      6       Canada---Belcher Is.
CO    33       2       Canada---Borden Is.
PO    1039     6       Canada---Borden Is.
PS    498      6       Canada---Borden Is.
CO    32       2       Canada---Brock Is.
PO    1038     6       Canada---Brock Is.
PS    493      6       Canada---Brock Is.
CO    40       2       Canada---Byam Martin
                       Is.
PO    1046     6       Canada---Byam Martin
                       Is.
PS    510      6       Canada---Byam Martin
                       Is.
CO    63       2       Canada---Bylot Is.
PO    1078     6       Canada---Bylot Is.
PS    634      6       Canada---Bylot Is.
CO    58       2       Canada---Coats Is.
PO    1070     6       Canada---Coats Is.
PS    610      6       Canada---Coats Is.
CO    47       2       Canada---Cornwall Is.
PO    1053     6       Canada---Cornwall Is.
PS    525      6       Canada---Cornwall Is.
CO    48       2       Canada---Cornwallis
                       Is.
PO    1054     6       Canada---Cornwallis
                       Is.
PS    528      6       Canada---Cornwallis
                       Is.
CO    49       2       Canada---Devon Is.
PO    1055     6       Canada---Devon Is.
PS    529      6       Canada---Devon Is.
CO    28       2       Canada---Eglinton Is.
PO    1033     6       Canada---Eglinton Is.
PS    484      6       Canada---Eglinton Is.
CO    37       2       Canada---Ellef
                       Ringnes and Amund
                       Ringnes Is.
PO    1043     6       Canada---Ellef
                       Ringnes and Amund
                       Ringnes Is.
PS    507      6       Canada---Ellef
                       Ringnes and Amund
                       Ringnes Is.
CO    53       2       Canada---Ellesmere Is.
PO    1060     6       Canada---Ellesmere Is.
PS    562      6       Canada---Ellesmere Is.
CO    26       1       Canada---Great Bear
                       Lake
PO    1030     1       Canada---Great Bear
                       Lake
PS    466      1       Canada---Great Bear
                       Lake
CO    31       1       Canada---Great Slave
                       Lake
PO    1036     1       Canada---Great Slave
                       Lake
PS    490      1       Canada---Great Slave
                       Lake
PS    716      1       Canada---lake
US    415      1       Canada---lake
CO    35       1       Canada---Lake Atha
                       basca
PO    1041     1       Canada---Lake Atha
                       basca
PS    501      1       Canada---Lake Atha
                       basca
CO    44       1       Canada---Lake Mani
                       toba
PO    1050     1       Canada---Lake Mani
                       toba
PS    519      1       Canada---Lake Mani
                       toba
CO    46       1       Canada---Lake Win
                       nipeg
PO    1052     1       Canada---Lake Win
                       nipeg
PS    521      1       Canada---Lake Win
                       nipeg
CO    43       1       Canada---Lake Win
                       nipegosis
PO    1049     1       Canada---Lake Win
                       nipegosis
PS    518      1       Canada---Lake Win
                       nipegosis
CO    38       2       Canada---Lougheed Is.
PO    1044     6       Canada---Lougheed Is.
PS    508      6       Canada---Lougheed Is.
CO    34       2       Canada---Mackenzie
                       King Is.
PO    1040     6       Canada---Mackenzie
                       King Is.
PS    499      6       Canada---Mackenzie
                       King Is.
CO    60       2       Canada---Manitoulin
                       Is.
PO    1072     6       Canada---Manitoulin
                       Is.
CO    64       2       Canada---Mansel Is.
PO    1079     6       Canada---Mansel Is.
PS    642      6       Canada---Mansel Is.
CO    45       2       Canada---Meighen Is.
PO    1051     6       Canada---Meighen Is.
PS    520      6       Canada---Meighen Is.
CO    30       2       Canada---Melville Is.
PO    1035     6       Canada---Melville Is.
PS    488      6       Canada---Melville Is.
PO    1118     6       Canada---Newfound
                       land
PS    760      6       Canada---Newfound
                       land
CO    71       2       Canada---Prince
                       Charles Is.
PO    1087     6       Canada---Prince
                       Charles Is.
PS    661      6       Canada---Prince
                       Charles Is.
CO    84       2       Canada---Prince
                       Edward Is.
PO    1107     6       Canada---Prince
                       Edward Is.
PS    749      6       Canada---Prince
                       Edward Is.
CO    42       2       Canada---Prince of
                       Wales Is.
PO    1048     6       Canada---Prince of
                       Wales Is.
PS    516      6       Canada---Prince of
                       Wales Is.
CO    27       2       Canada---Prince
                       Patrick Is.
PO    1032     6       Canada---Prince
                       Patrick Is.
PS    470      6       Canada---Prince
                       Patrick Is.
CO    23       2       Canada---Queen Char
                       lotte Is.
PO    1027     6       Canada---Queen Char
                       lotte Is.
PS    463      6       Canada---Queen Char
                       lotte Is.
CO    41       1       Canada---Reindeer
                       Lake
PO    1047     1       Canada---Reindeer
                       Lake
PS    514      1       Canada---Reindeer
                       Lake
CO    56       2       Canada---Southamp
                       ton Is.
PO    1067     6       Canada---Southamp
                       ton Is.
PS    590      6       Canada---Southamp
                       ton Is.
CO    24       2       Canada---Vancouver
                       Is.
PO    1028     6       Canada---Vancouver
                       Is.
PS    464      6       Canada---Vancouver
                       Is.
CO    29       2       Canada---Victoria Is.
PO    1034     6       Canada---Victoria Is.
PS    485      6       Canada---Victoria Is.
CO    100      2       Canary Is.
CO    101      2       Canary Is.
CO    102      2       Canary Is.
CO    103      2       Canary Is.
PO    1130     2       Canary Is.
PO    1133     2       Canary Is.
PO    1135     2       Canary Is.
PO    1136     2       Canary Is.
PS    772      2       Canary Is.
PS    775      2       Canary Is.
PS    777      2       Canary Is.
PS    778      2       Canary Is.
CO    134      1       Caspian Sea
PO    1249     1       Caspian Sea
PS    891      1       Caspian Sea
PO    1196     5       Central African
                       Republic
PS    838      5       Central African
                       Republic
PO    1194     2       Chad
PS    836      2       Chad
PO    1090     2       Chile
PS    693      2       Chile
PS    702      2       Chile---Is.la de Chiloe
PO    1093     2       Chile---Isla de Chiloe
PO    1091     2       Chile---Tierra del
                       Fuego
PS    699      2       Chile---Tierra del
                       Fuego
PO    1270     5       China
PS    912      5       China
CO    159      2       China---Hainan Dao
PO    1292     5       China---Hainan Dao
                       (island)
PS    934      5       China---Hainan Dao
                       (island)
US    339      1       Clark Hill Reservoir
PO    1082     2       Colombia
PS    647      2       Colombia
US    251      6       Colorado
PO    1185     2       Congo
PS    827      2       Congo
US    409      5       Connecticut
CO    111      2       Corsica
PO    1173     3       Corsica
PS    815      3       Corsica
PO    1068     2       Costa Rica
PS    596      2       Costa Rica
CO    122      2       Crete
PO    1212     2       Crete
PS    854      2       Crete
CO    57       2       Cuba
PO    1069     4       Cuba
PS    602      4       Cuba
CO    61       2       Cuba---Isla de Pinos
PO    1073     4       Cuba---Isla de Pinos
PS    616      4       Cuba---Isla de Pinos
CO    80       2       Curacao
PO    1102     3       Curacao
PS    735      3       Curacao
CO    128      2       Cyprus
PO    1228     3       Cyprus
PS    870      3       Cyprus
PO    1189     2       Czechoslovakia
PS    831      2       Czechoslovakia
US    393      5       Delaware
US    402      1       Delaware---bay
CO    112      2       Denmark---Fyn
PO    1179     2       Denmark---Fyn
PS    821      2       Denmark---Fyn
PO    1169     2       Denmark---Jutland
PS    811      2       Denmark---Jutland
CO    113      2       Denmark---Lolland
PO    1181     2       Denmark---Lolland
PS    823      2       Denmark---Lolland
CO    115      2       Denmark---Sjaelland
PO    1183     2       Denmark---Sjaelland
PS    825      2       Denmark---Sjaelland
PO    1272     4       Disputed area between
                       India and China
PS    914      4       Disputed area between
                       India and China
PO    1242     3       Djibouti
PS    884      3       Djibouti
PO    1100     3       Dominican Republic
PS    724      3       Dominican Republic
PO    1180     3       East Germany
PS    822      3       East Germany
PO    1077     3       Ecuador
PS    632      3       Ecuador
PO    1213     6       Egypt
PS    855      6       Egypt
PO    1061     4       El Salvador
PS    567      4       El Salvador
PO    1150     5       England
PS    792      5       England
PO    1175     6       Equatorial Guinea
PS    817      6       Equatorial Guinea
PO    1230     4       Ethiopia
PS    872      4       Ethiopia
CO    105      2       Faeroe Is.
PO    1147     2       Faeroe Is.
PS    789      2       Faeroe Is.
CO    89       2       Faulkland Is.
PO    1114     5       Faulkland Is.
PS    756      5       Faulkland Is.
CO    222      2       Fiji---Vanua Levu
PO    1360     3       Fiji---Vanua Levu
PS    1002     3       Fiji---Vanua Levu
CO    221      2       Fiji---Viti Levu
PO    1359     3       Fiji---Viti Levu
PS    1001     3       Fiji---Viti Levu
PO    1205     3       Finland
PS    847      3       Finland
US    313      4       Florida
US    322      4       Florida---island
US    348      4       Florida---island
US    349      4       Florida---island
US    350      4       Florida---island
US    351      4       Florida---island
US    353      4       Florida---island
US    343      4       Florida---Keys
US    344      4       Florida---Keys
US    345      4       Florida---Keys
US    346      4       Florida---Keys
US    319      1       Florida---lake
US    347      1       Florida---Lake
                       Okeechobee
US    341      4       Florida---Pine Is.
US    340      4       Florida---Sanibel Is.
PO    1153     3       France
PS    795      3       France
PO    1122     3       French Guiana
PS    764      3       French Guiana
PO    1174     5       Gabon
PS    816      5       Gabon
CO    52       2       Galapagos Is.
PO    1059     3       Galapagos Is.
PS    553      3       Galapagos Is.
PO    1132     2       Gambia
PS    774      2       Gambia
US    320      6       Georgia
PO    1154     5       Ghana
PS    796      5       Ghana
CO    118      2       Gotland
PO    1199     2       Gotland
PS    841      2       Gotland
US    248      1       Great Salt Lake
CO    119      2       Greece
PO    1202     2       Greece
PO    1206     2       Greece
PS    844      2       Greece
PS    848      2       Greece
CO    79       2       Green
PO    1099     2       Greenland
PS    718      2       Greenland
CO    98       2       Greenland---off-shore
                       island
PO    1126     2       Greenland---off-shore
                       island
PS    768      2       Greenland---off-shore
                       island
CO    88       2       Guadeloupe---east
PO    1112     3       Guadeloupe---east
PS    754      3       Guadeloupe---east
CO    87       2       Guadeloupe---west
PO    1111     3       Guadeloupe---west
PS    753      3       Guadeloupe---west
PO    1057     3       Guatemala
PS    549      3       Guatemala
PO    1134     5       Guinea
PS    776      5       Guinea
PO    1131     4       Guinea-Bissau
PS    773      4       Guinea-Bissau
PO    1113     4       Guyana
PS    755      4       Guyana
PO    1092     6       Haiti
PS    700      6       Haiti
CO    75       2       Haiti and the Domini
                       can Republic
CO    19       2       Hawaiian Is.---Hawaii
PO    1022     3       Hawaiian Is.---Hawaii
PS    458      3       Hawaiian Is.---Hawaii
CO    16       2       Hawaiian Is.---Kauai
PO    1019     3       Hawaiian Is.---Kauai
PS    455      3       Hawaiian Is.---Kauai
CO    18       2       Hawaiian Is.---Maui
PO    1021     3       Hawaiian Is.---Maui
PS    457      3       Hawaiian Is.---Maui
CO    15       2       Hawaiian Is.---Niihau
PO    1018     3       Hawaiian Is.---Niihau
PS    454      3       Hawaiian Is.---Niihau
CO    17       2       Hawaiian Is.---Oahu
PO    1020     3       Hawaiian Is.---Oahu
PS    456      3       Hawaiian Is.---Oahu
PO    1063     5       Honduras
PS    572      5       Honduras
PO    1197     5       Hungary
PS    839      5       Hungary
CO    97       2       Iceland
PO    1125     7       Iceland
PS    767      7       Iceland
US    242      6       Idaho
CO    146      2       Ile Kerguelen
PO    1268     3       Ile Kerguelen
PS    910      3       Ile Kerguelen
US    284      4       Illinois
PO    1267     2       India
PS    909      2       India
US    311      5       Indiana
CO    177      2       Indonesia---Alor
PO    1312     5       Indonesia---Alor
PS    954      5       Indonesia---Alor
CO    164      2       Indonesia---Bali
PO    1299     5       Indonesia---Bali
PS    941      5       Indonesia---Bali
CO    156      2       Indonesia---Bangka
PO    1289     5       Indonesia---Bangka
PS    931      5       Indonesia---Bangka
CO    162      2       Indonesia---Bawean
PO    1296     5       Indonesia---Bawean
PS    938      5       Indonesia---Bawean
CO    158      2       Indonesia---Belitung
PO    1291     5       Indonesia---Belitung
PS    933      5       Indonesia---Belitung
CO    192      2       Indonesia---Biak and
                       Kepulauan Schouten
PO    1329     5       Indonesia---Biak and
                       Kepulauan Schouten
PS    971      5       Indonesia---Biak and
                       Kepulauan Schouten
PO    1293     5       Indonesia---Borneo---
                       Kalimantan
PS    935      5       Indonesia---Borneo---
                       Kalimantan
CO    180      2       Indonesia---Buru
PO    1316     5       Indonesia---Buru
PS    958      5       Indonesia---Buru
CO    183      2       Indonesia---Ceram
PO    1320     5       Indonesia---Ceram
PS    962      5       Indonesia---Ceram
CO    169      2       Indonesia---Flores
PO    1304     5       Indonesia---Flores
PS    946      5       Indonesia---Flores
CO    182      2       Indonesia---Halmahera
PO    1319     5       Indonesia---Halmahera
PS    961      5       Indonesia---Halmahera
CO    175      2       Indonesia---island
PO    1310     5       Indonesia---island
PS    952      5       Indonesia---island
CO    157      2       Indonesia---Java
PO    1290     5       Indonesia---Java
PS    932      5       Indonesia---Java
CO    191      2       Indonesia---Kepu
                       lauan Aru
PO    1328     5       Indonesia---Kepu
                       lauan Aru
PS    970      5       Indonesia---Kepu
                       lauan Aru
CO    189      2       Indonesia---Kepu
                       lauan Tanimbar
PO    1326     5       Indonesia---Kepu
                       lauan Tanimbar
PS    968      5       Indonesia---Kepu
                       lauan Tanimbar
PO    1324     5       Indonesia---New
                       Guinea---Irian Jaya
PS    966      5       Indonesia---New
                       Guinea---Irian Jaya
CO    152      2       Indonesia---Nias
PO    1281     5       Indonesia---Nias
PS    923      5       Indonesia---Nias
CO    181      2       Indonesia---Obi
PO    1318     5       Indonesia---Obi
PS    960      5       Indonesia---Obi
CO    153      2       Indonesia---Siberut
PO    1283     5       Indonesia---Siberut
PS    925      5       Indonesia---Siberut
CO    167      2       Indonesia---Sulawesi
                       (Celebes)
PO    1302     5       Indonesia---Sulawesi
                       (Celebes)
PS    944      5       Indonesia---Sulawesi
                       (Celebes)
CO    151      2       Indonesia---Sumatra
PO    1280     5       Indonesia---Sumatra
PS    922      5       Indonesia---Sumatra
CO    168      2       Indonesia---Sumba
PO    1303     5       Indonesia---Sumba
PS    945      5       Indonesia---Sumba
PS    942      5       Indonesia---Sumbawa
                       & Lombok
CO    165      2       Indonesia---Sumbawa
                       and Lombok
PO    1300     5       Indonesia---Sumbawa
                       and Lombok
CO    176      2       Indonesia---Timor
PO    1311     5       Indonesia---Timor
PS    953      5       Indonesia---Timor
CO    186      2       Indonesia---Waigeo
PO    1323     5       Indonesia---Waigeo
PS    965      5       Indonesia---Waigeo
CO    179      2       Indonesia---Wetar
PO    1315     5       Indonesia---Wetar
PS    957      5       Indonesia---Wetar
US    262      6       Iowa
PO    1246     5       Iran
PS    888      5       Iran
PO    1240     6       Iraq
PS    882      6       Iraq
CO    104      2       Ireland
PO    1141     4       Ireland
PS    783      4       Ireland
CO    76       2       Isla de Chiloe
PO    1233     2       Israel
PS    875      2       Israel
PO    1167     6       Italy
PS    809      6       Italy
PO    1145     4       Ivory Coast
PS    787      4       Ivory Coast
CO    69       2       Jamaica
PO    1085     5       Jamaica
PS    650      5       Jamaica
CO    196      2       Japan---Hokkaido
PO    1333     3       Japan---Hokkaido
PS    975      3       Japan---Hokkaido
CO    188      2       Japan---Honshu
PO    1325     3       Japan---Honshu
PS    967      3       Japan---Honshu
CO    184      2       Japan---Kyushu
PO    1321     3       Japan---Kyushu
PS    963      3       Japan---Kyushu
CO    190      2       Japan---Shikoku
PO    1327     3       Japan---Shikoku
PS    969      3       Japan---Shikoku
PO    1237     5       Jordan
PS    879      5       Jordan
US    257      4       Kansas
US    299      6       Kentucky
PO    1231     5       Kenya
PS    873      5       Kenya
PO    1361     2       Kuwait
PS    1003     2       Kuwait
CO    117      1       Lake Chad
PO    1192     1       Lake Chad
PS    834      1       Lake Chad
US    411      1       Lake Champlain
US    413      2       Lake Champlain---
                       Grand Isle
CO    59       1       Lake Erie
PO    1071     1       Lake Erie
US    333      1       Lake Erie
US    354      2       Lake Erie---Long Point
                       (land)
US    329      1       Lake George
US    337      2       Lake Huron---Barrie
                       Is.
US    325      2       Lake Huron---Bois
                       Blanc Is.
US    355      2       Lake Huron---Chris
                       tian Is.
US    332      2       Lake Huron---Cock
                       burn Is.
US    330      2       Lake Huron---Drum
                       mond Is.
US    342      2       Lake Huron---Fitzwill
                       iam Is.
US    335      2       Lake Huron---Mani
                       toulin Is.
US    246      1       Lake Mead (east)
US    244      1       Lake Mead (west)
US    321      2       Lake Michigan---Bea
                       ver Is.
US    317      2       Lake Michigan---Man
                       itou Is.
US    314      2       Lake Michigan---
                       Washington Is.
CO    129      1       Lake Nyasa
PO    1232     1       Lake Nyasa
PS    874      1       Lake Nyasa
CO    66       1       Lake Ontario
PO    1081     1       Lake Ontario
US    357      1       Lake Ontario
US    371      2       Lake Ontario---island
US    375      2       Lake Ontario---island
US    377      2       Lake Ontario---island
US    323      1       Lake Seminole
US    336      1       Lake St. Clair
CO    51       1       Lake Superior
PO    1058     1       Lake Superior
US    281      1       Lake Superior
US    316      2       Lake Superior---
                       Grand Is.
US    326      2       Lake Superior---island
US    307      2       Lake Superior---Isle
                       Royale
US    286      2       Lake Superior---Made
                       line Is.
US    318      2       Lake Superior---Mich
                       ipicoten Is.
US    288      2       Lake Superior---Oak
                       Is.
US    292      2       Lake Superior---Outer
                       Is.
US    308      2       Lake Superior---Pie Is.
US    289      2       Lake Superior---Stock
                       ton Is.
US    236      1       Lake Tahoe
CO    125      1       Lake Tanganyika
PO    1220     1       Lake Tanganyika
PS    862      1       Lake Tanganyika
US    261      1       Lake Texoma
CO    127      1       Lake Victoria
PO    1227     1       Lake Victoria
PS    869      1       Lake Victoria
CO    55       1       Lakes Michigan and
                       Huron
PO    1065     1       Lakes Michigan and
                       Huron
US    312      1       Lakes Michigan and
                       Huron
PO    1285     6       Laos
PS    927      6       Laos
PO    1238     3       Lebanon
PS    880      3       Lebanon
PO    1216     6       Lesotho
PS    858      6       Lesotho
PO    1140     3       Liberia
PS    782      3       Liberia
PO    1176     4       Libya
PS    818      4       Libya
PO    1177     4       Liechtenstein
PS    819      4       Liechtenstein
CO    77       2       Long Is.
PO    1095     3       Long Is.
US    417      1       Long Is.---Great South
                       Bay
US    272      4       Louisiana
US    275      1       Louisiana---Calcasieu
                       Lake
US    309      4       Louisiana---Cat Is.
US    278      1       Louisiana---Grand
                       Lake
US    285      4       Louisiana---island
US    287      4       Louisiana---island
US    296      4       Louisiana---island
US    297      4       Louisiana---island
US    298      4       Louisiana---island
US    300      4       Louisiana---island
US    301      4       Louisiana---island
US    302      4       Louisiana---island
US    303      4       Louisiana---island
US    304      4       Louisiana---island
US    305      4       Louisiana---island
US    306      4       Louisiana---island
US    290      1       Louisiana---Lake Mau
                       repas
US    294      1       Louisiana---Lake Pont
                       chartrain
US    282      4       Louisiana---Marsh Is.
US    273      1       Louisiana---Sabine
                       Lake
US    291      4       Louisiana---Timbalier
                       Is.
US    280      1       Louisiana---White
                       Lake
PO    1164     5       Luxembourg
PS    806      5       Luxembourg
CO    110      2       "Macias Nguema
                       Biyogo (African
                       island, Fernando Po)"
PO    1172     3       "Macias Nguema
                       Biyogo (African
                       island, Fernando Po)"
PS    814      3       "Macias Nguema
                       Biyogo (African
                       island, Fernando Po)"
CO    132      2       Madagascar
PO    1244     3       Madagascar
PS    886      3       Madagascar
US    427      5       Maine
US    431      5       Maine---island
US    432      5       Maine---island
US    433      5       Maine---island
US    434      5       Maine---island
US    435      5       Maine---island
US    436      5       Maine---island
US    437      5       Maine---island
US    438      5       Maine---island
US    439      5       Maine---island
PO    1229     2       Malawi
PS    871      2       Malawi
PO    1294     6       Malaysia---Borneo---
                       Malaysia Timor
PS    936      6       Malaysia---Borneo---
                       Malaysia Timor
PO    1201     6       Malaysia---Malay Pen
                       insula
PS    843      6       Malaysia---Malay Pen
                       insula
PO    1139     6       Mali
PS    781      6       Mali
CO    108      2       Mallorca
PO    1159     2       Mallorca
PS    801      2       Mallorca
CO    90       2       Martinique
PO    1115     3       Martinique
PS    757      3       Martinique
US    358      4       Maryland
US    403      4       Maryland
US    404      4       Maryland
US    386      1       Maryland---inlet
US    376      4       Maryland---island
US    378      4       Maryland---island
US    380      4       Maryland---island
US    381      4       Maryland---island
US    410      4       Massachusetts
US    426      1       Massachusetts---bay
US    430      1       Massachusetts---inlet
US    428      4       Massachusetts---Mar
                       thas Vineyard
US    429      4       Massachusetts---Nan
                       tucket Is.
PO    1129     4       Mauritania
PS    771      4       Mauritania
CO    142      2       Mauritius
PO    1261     3       Mauritius
PS    903      3       Mauritius
PO    1037     6       Mexico
PS    491      6       Mexico
US    315      2       Michigan (lower)
US    293      2       Michigan (upper)
US    260      4       Minnesota
US    264      1       Minnesota---Lake of
                       the Woods
US    268      4       Minnesota---Lake of
                       the Woods---island
US    269      4       Minnesota---Lake of
                       the Woods---island
US    271      4       Minnesota---Lake of
                       the Woods---island
US    266      4       Minnesota---Lake of
                       the Woods---land west
                       of lake
US    279      4       Minnesota---little
                       piece
US    276      1       Minnesota---Namakan
                       Lake
US    274      1       Minnesota---Rainy
                       Lake
US    265      1       Minnesota---Shoal
                       Lake
US    283      2       Mississippi
US    263      2       Missouri
PO    1275     3       Mongolia
PS    917      3       Mongolia
US    243      5       Montana
PO    1138     5       Morocco
PS    780      5       Morocco
PO    1225     4       Mozambique
PS    867      4       Mozambique
PO    1186     2       Namibia
PS    828      2       Namibia
US    253      5       Nebraska
PO    1274     3       Nepal
PS    916      3       Nepal
PO    1162     3       Netherlands
PS    804      3       Netherlands
US    237      5       Nevada
CO    212      2       New Caledonia
                       (island)
PO    1350     3       New Caledonia
                       (island)
PS    992      3       New Caledonia
                       (island)
CO    187      2       New Guinea
PO    1336     3       New Guinea---Papua
PS    978      3       New Guinea---Papua
US    418      6       New Hampshire
US    414      1       New Hampshire---lake
US    416      1       New Hampshire---lake
CO    215      2       New Hebrides---Espir
                       itu Santo
PO    1353     3       New Hebrides---Espir
                       itu Santo
PS    995      3       New Hebrides---Espir
                       itu Santo
CO    216      2       New Hebrides---Male
                       kula
PO    1354     3       New Hebrides---Male
                       kula
PS    996      3       New Hebrides---Male
                       kula
US    400      2       New Jersey
US    405      2       New Jersey---island
US    407      1       New Jersey---Newark
                       Bay
US    250      5       New Mexico
US    356      3       New York
US    420      3       New York---Fishers Is.
US    408      3       New York---Long Is.
US    419      3       New York---Shelter Is.
CO    6        2       New Zealand---
                       Chatham Is.
PO    1009     6       New Zealand---
                       Chatham Is.
PS    445      6       New Zealand---
                       Chatham Is.
CO    219      2       New Zealand---North
                       Is.
CO    220      2       New Zealand---North
                       Is.
PO    1357     6       New Zealand---North
                       Is.
PO    1358     6       New Zealand---North
                       Is.
PS    999      6       New Zealand---North
                       Is.
PS    1000     6       New Zealand---North
                       Is.
CO    214      2       New Zealand---South
                       Is.
PO    1352     6       New Zealand---South
                       Is.
PS    994      6       New Zealand---South
                       Is.
CO    217      2       New Zealand---Stew
                       art Is.
PO    1355     6       New Zealand---Stew
                       art Is.
PS    997      6       New Zealand---Stew
                       art Is.
CO    93       2       Newfoundland
PO    1066     6       Nicaragua
PS    588      6       Nicaragua
PO    1156     5       Niger
PS    798      5       Niger
PO    1161     4       Nigeria
PS    803      4       Nigeria
CO    11       2       North and South
                       America
US    328      4       North Carolina
US    361      4       North Carolina---Cape
                       Fear
US    383      4       North Carolina---
                       island
US    384      4       North Carolina---
                       island
US    388      4       North Carolina---
                       island
US    391      4       North Carolina---
                       island
US    392      4       North Carolina---
                       island
US    395      4       North Carolina---
                       island
US    396      4       North Carolina---
                       island
US    397      4       North Carolina---
                       island
US    398      4       North Carolina---
                       island
US    399      4       North Carolina---
                       island
US    255      3       North Dakota
PO    1314     2       North Korea
PS    956      2       North Korea
PO    1146     5       Northern Ireland
PS    788      5       Northern Ireland
PO    1163     4       Norway
PS    805      4       Norway
CO    2        1       Oceans
PO    1005     1       Oceans
PS    441      1       Oceans
US    324      4       Ohio
US    256      3       Oklahoma
PO    1254     4       Oman---northern sec
                       tion
PS    896      4       Oman---northern sec
                       tion
PO    1260     4       Oman---southern sec
                       tion
PS    902      4       Oman---southern sec
                       tion
US    225      3       Oregon
CO    106      2       Outer Hebrides
PO    1148     2       Outer Hebrides
PS    790      2       Outer Hebrides
PO    1265     4       Pakistan
PS    907      4       Pakistan
PO    1074     5       Panama
PS    617      5       Panama
PO    1109     5       Paraguay
PS    751      5       Paraguay
US    352      6       Pennsylvania
PO    1076     5       Peru
PS    630      5       Peru
CO    170      2       Philippines---Luzon
PO    1305     4       Philippines---Luzon
PS    947      4       Philippines---Luzon
CO    174      2       Philippines---Mind
                       anao
PO    1309     4       Philippines---Mind
                       anao
PS    951      4       Philippines---Mind
                       anao
CO    172      2       Philippines---Mindoro
PO    1307     4       Philippines---Mindoro
PS    949      4       Philippines---Mindoro
CO    166      2       Philippines---Palawan
PO    1301     4       Philippines---Palawan
PS    943      4       Philippines---Palawan
CO    173      2       "Philippines---Panay,
                       Negros, and Bohol"
PO    1308     4       "Philippines---Panay,
                       Negros, and Bohol"
PS    950      4       "Philippines---Panay,
                       Negros, and Bohol"
CO    178      2       Philippines---Samar
PO    1313     4       Philippines---Samar
PS    955      4       Philippines---Samar
PO    1195     5       Poland
PS    837      5       Poland
PO    1142     4       Portugal
PS    784      4       Portugal
CO    81       2       Puerto Rico
PO    1104     3       Puerto Rico
PS    746      3       Puerto Rico
PO    1252     4       Qatar
PS    894      4       Qatar
CO    140      2       Reunion Is.
PO    1258     3       Reunion Is.
PS    900      3       Reunion Is.
US    421      6       Rhode Is.
US    422      6       Rhode Is.---Block Is.
US    423      6       Rhode Is.---island
US    424      6       Rhode Is.---island
US    425      6       Rhode Is.---island
CO    124      2       Rhodes
PO    1218     2       Rhodes
PS    860      2       Rhodes
PO    1204     3       Romania
PS    846      3       Romania
PO    1219     5       Rwanda
PS    861      5       Rwanda
CO    7        2       Samoa---Savaii
PO    1010     3       Samoa---Savaii
PS    446      3       Samoa---Savaii
CO    8        2       Samoa---Upolu
PO    1011     3       Samoa---Upolu
PS    447      3       Samoa---Upolu
CO    109      2       Sardinia
PO    1170     6       Sardinia
PS    812      6       Sardinia
PO    1236     3       Saudi Arabia
PS    878      3       Saudi Arabia
US    327      1       Sault Ste. Marie
PO    1149     2       Scotland
PS    791      2       Scotland
CO    107      2       Scotland/England/Wal
                       es
PO    1127     3       Senegal
PS    769      3       Senegal
CO    116      2       Sicily
PO    1191     6       Sicily
PS    833      6       Sicily
PO    1137     6       Sierra Leone
PS    779      6       Sierra Leone
CO    207      2       Solomon Is.---Bouga
                       inville
PO    1345     3       Solomon Is.---Bouga
                       inville
PS    987      3       Solomon Is.---Bouga
                       inville
CO    209      2       Solomon Is.---Guadal
                       canal
PO    1347     3       Solomon Is.---Guadal
                       canal
PS    989      3       Solomon Is.---Guadal
                       canal
CO    210      2       Solomon Is.---San
                       Cristobal
PO    1348     3       Solomon Is.---San
                       Cristobal
PS    990      3       Solomon Is.---San
                       Cristobal
PO    1241     2       Somalia
PS    883      2       Somalia
PO    1198     5       South Africa
PS    840      5       South Africa
US    334      2       South Carolina
US    254      2       South Dakota
CO    96       2       South Georgia Is.
PO    1124     5       South Georgia Is.
PS    766      5       South Georgia Is.
PO    1317     4       South Korea
PS    959      4       South Korea
PO    1143     2       Spain
PS    785      2       Spain
CO    149      2       Sri Lanka (Ceylon)
PO    1273     5       Sri Lanka (Ceylon)
PS    915      5       Sri Lanka (Ceylon)
US    406      3       Staten Is.
PO    1208     3       Sudan
PS    850      3       Sudan
PO    1120     5       Surinam
PS    762      5       Surinam
CO    114      2       Svalbard
PO    1182     4       Svalbard
PS    824      4       Svalbard
PO    1226     6       Swaziland
PS    868      6       Swaziland
PO    1184     5       Sweden
PS    826      5       Sweden
PO    1165     5       Switzerland
PS    807      5       Switzerland
PO    1239     4       Syria
PS    881      4       Syria
CO    22       2       Tahiti
PO    1025     3       Tahiti
PS    461      3       Tahiti
CO    171      2       Taiwan
PO    1306     2       Taiwan
PS    948      2       Taiwan
PO    1223     3       Tanzania
PS    865      3       Tanzania
US    295      3       Tennessee
US    252      2       Texas
US    258      2       Texas---island
US    267      2       Texas---island
US    259      2       Texas---Padre Is.
PO    1282     5       Thailand
PS    924      5       Thailand
CO    74       2       Tierra del Fuego
PO    1155     6       Togo
PS    797      6       Togo
CO    86       2       Trinidad and Tobago
PO    1110     6       Trinidad and Tobago
PS    752      6       Trinidad and Tobago
PO    1168     5       Tunisia
PS    810      5       Tunisia
PO    1215     3       Turkey
PS    857      3       Turkey
CO    78       2       Turks and Caicos Is.
PO    1096     4       Turks and Caicos Is.
PS    708      4       Turks and Caicos Is.
PO    1222     2       Uganda
PS    864      2       Uganda
PO    1251     2       United Arab Emirates
PS    893      2       United Arab Emirates
PO    1248     4       Unnamed neutral zone
                       between Iraq and Saudi
                       Arabia
PS    890      4       Unnamed neutral zone
                       between Iraq and Saudi
                       Arabia
PO    1151     2       Upper Volta
PS    793      2       Upper Volta
PO    1119     2       Uruguay
PS    761      2       Uruguay
PO    1031     3       US
PO    1006     6       USSR
PS    442      6       USSR
CO    143      1       USSR---Aral Sea
PO    1262     1       USSR---Aral Sea
PS    904      1       USSR---Aral Sea
CO    130      1       USSR---Azov Sea
PO    1234     1       USSR---Azov Sea
PS    876      1       USSR---Azov Sea
CO    133      2       USSR---Franz Josef
                       Land
CO    137      2       USSR---Franz Josef
                       Land
CO    139      2       USSR---Franz Josef
                       Land
CO    141      2       USSR---Franz Josef
                       Land
CO    144      2       USSR---Franz Josef
                       Land
CO    145      2       USSR---Franz Josef
                       Land
PO    1247     6       USSR---Franz Josef
                       Land
PO    1255     6       USSR---Franz Josef
                       Land
PO    1257     6       USSR---Franz Josef
                       Land
PO    1259     6       USSR---Franz Josef
                       Land
PO    1263     6       USSR---Franz Josef
                       Land
PO    1266     6       USSR---Franz Josef
                       Land
PS    889      6       USSR---Franz Josef
                       Land
PS    897      6       USSR---Franz Josef
                       Land
PS    899      6       USSR---Franz Josef
                       Land
PS    901      6       USSR---Franz Josef
                       Land
PS    905      6       USSR---Franz Josef
                       Land
PS    908      6       USSR---Franz Josef
                       Land
CO    155      1       USSR---Lake Baikal
PO    1288     1       USSR---Lake Baikal
PS    930      1       USSR---Lake Baikal
CO    148      1       USSR---Lake
                       Balkhash (east)
PO    1271     1       USSR---Lake
                       Balkhash (east)
PS    913      1       USSR---Lake
                       Balkhash (east)
CO    147      1       USSR---Lake
                       Balkhash (west)
PO    1269     1       USSR---Lake
                       Balkhash (west)
PS    911      1       USSR---Lake
                       Balkhash (west)
CO    136      2       USSR---Novaya Zem
                       lya
PO    1253     6       USSR---Novaya Zem
                       lya
PS    895      6       USSR---Novaya Zem
                       lya
CO    131      1       USSR---Onazhskoye
                       Ozero
PO    1235     1       USSR---Onazhskoye
                       Ozero
PS    877      1       USSR---Onazhskoye
                       Ozero
CO    154      2       USSR---Ostrov Bol'
                       shevik
PO    1284     6       USSR---Ostrov Bol'
                       shevik
PS    926      6       USSR---Ostrov Bol'
                       shevik
CO    161      2       USSR---Ostrov
                       Bol'shoy Begichev
PO    1295     6       USSR---Ostrov
                       Bol'shoy Begichev
PS    937      6       USSR---Ostrov
                       Bol'shoy Begichev
CO    198      2       USSR---Ostrov B
                       ol'shoy Lyakhovskiy
PO    1335     6       USSR---Ostrov
                       Bol'shoy Lyakhovskiy
PS    977      6       USSR---Ostrov
                       Bol'shoy Lyakhovskiy
CO    121      2       USSR---Ostrov Hiiu
                       maa
PO    1210     6       USSR---Ostrov Hiiu
                       maa
PS    852      6       USSR---Ostrov Hiiu
                       maa
CO    202      2       USSR---Ostrov Iturup
PO    1340     6       USSR---Ostrov Iturup
PS    982      6       USSR---Ostrov Iturup
CO    211      2       USSR---Ostrov Kara
                       ginskiy
PO    1349     6       USSR---Ostrov Kara
                       ginskiy
PS    991      6       USSR---Ostrov Kara
                       ginskiy
CO    135      2       USSR---Ostrov
                       Kolguyev
PO    1250     6       USSR---Ostrov
                       Kolguyev
PS    892      6       USSR---Ostrov
                       Kolguyev
CO    194      2       USSR---Ostrov Kotel'
                       nyy and Ostrov Fad
                       deyevskiy
PO    1331     6       USSR---Ostrov Kotel'
                       nyy and Ostrov Fad
                       deyevskiy
PS    973      6       USSR---Ostrov Kotel'
                       nyy and Ostrov Fad
                       deyevskiy
CO    197      2       USSR---Ostrov Malyy
                       Lyakhovskiy
PO    1334     6       USSR---Ostrov Malyy
                       Lyakhovskiy
PS    976      6       USSR---Ostrov Malyy
                       Lyakhovskiy
CO    201      2       USSR---Ostrov
                       Novaya Sibir'
PO    1339     6       USSR---Ostrov
                       Novaya Sibir'
PS    981      6       USSR---Ostrov
                       Novaya Sibir'
CO    150      2       "USSR---Ostrov Okty
                       abr'skoy Revolyutsii,
                       Komsomolets, Pioner"
PO    1278     6       "USSR---Ostrov Okty
                       abr'skoy Revolyutsii,
                       Komsomolets, Pioner"
PS    920      6       "USSR---Ostrov Okty
                       abr'skoy Revolyutsii,
                       Komsomolets, Pioner"
CO    208      2       USSR---Ostrov Para
                       mushir
PO    1346     6       USSR---Ostrov Para
                       mushir
PS    988      6       USSR---Ostrov Para
                       mushir
CO    120      2       USSR---Ostrov Saare
                       maa
PO    1207     6       USSR---Ostrov Saare
                       maa
PS    849      6       USSR---Ostrov Saare
                       maa
CO    199      2       USSR---Ostrov Sakha
                       lin
PO    1337     6       USSR---Ostrov Sakha
                       lin
PS    979      6       USSR---Ostrov Sakha
                       lin
CO    204      2       USSR---Ostrov Urup
PO    1342     6       USSR---Ostrov Urup
PS    984      6       USSR---Ostrov Urup
CO    126      1       USSR---Ozero
                       Ladozhskoye (Lake
                       Ladoga)
PO    1224     1       USSR---Ozero
                       Ladozhskoye (Lake
                       Ladoga)
PS    866      1       USSR---Ozero
                       Ladozhskoye (Lake
                       Ladoga)
CO    195      2       USSR---Shantarskiye
                       Ostrova
PO    1332     6       USSR---Shantarskiye
                       Ostrova
PS    974      6       USSR---Shantarskiye
                       Ostrova
CO    4        2       USSR---Wrangel Is.
PO    1007     6       USSR---Wrangel Is.
PS    443      6       USSR---Wrangel Is.
PS    585      5       US---Alabama
PS    495      2       US---Arizona
PS    538      5       US---Arkansas
PS    649      4       US---Bahamas---
                       Andros
PS    652      4       US---Bahamas---
                       Andros
PS    653      4       US---Bahamas---
                       Andros
PS    655      4       US---Bahamas---
                       Andros
PS    658      4       US---Bahamas---
                       Andros
PS    687      4       US---Bahamas---Cat
                       Is.
PS    663      4       US---Bahamas---
                       Eleuthera Is.
PS    664      4       US---Bahamas---
                       Eleuthera Is.
PS    665      4       US---Bahamas---
                       Eleuthera Is.
PS    648      4       US---Bahamas---
                       Grand Bahama
PS    656      4       US---Bahamas---
                       Grand Bahama
PS    657      4       US---Bahamas---
                       Grand Bahama
PS    654      4       US---Bahamas---
                       Great Abaco and Little
                       Abaco
PS    659      4       US---Bahamas---
                       Mores Is.
PS    660      4       US---Bahamas---New
                       Providence Is.
PS    469      4       US---California
PS    486      4       US---California---San
                       Clemente Is.
PS    478      4       US---California---San
                       Miguel Is.
PS    483      4       US---California---San
                       Nicholas Is.
PS    487      4       US---California---
                       Santa Catalina Is.
PS    482      4       US---California---
                       Santa Cruz Is.
PS    479      4       US---California---
                       Santa Rosa Is.
PS    621      1       US---Clark Hill Reser
                       voir
PS    505      6       US---Colorado
PS    707      5       US---Connecticut
PS    686      5       US---Delaware
PS    696      1       US---Delaware---bay
PS    589      4       US---Florida
PS    600      4       US---Florida---island
PS    633      4       US---Florida---island
PS    635      4       US---Florida---island
PS    636      4       US---Florida---island
PS    637      4       US---Florida---island
PS    639      4       US---Florida---island
PS    626      4       US---Florida---Keys
PS    627      4       US---Florida---Keys
PS    628      4       US---Florida---Keys
PS    629      4       US---Florida---Keys
PS    597      1       US---Florida---lake
PS    631      1       US---Florida---Lake
                       Okeechobee
PS    623      4       US---Florida---Pine Is.
PS    622      4       US---Florida---Sani
                       bel Is.
PS    598      6       US---Georgia
PS    500      1       US---Great Salt Lake
PS    489      6       US---Idaho
PS    554      4       US---Illinois
PS    586      5       US---Indiana
PS    527      6       US---Iowa
PS    517      4       US---Kansas
PS    573      6       US---Kentucky
PS    711      1       US---Lake Champlain
PS    714      2       US---Lake Cham
                       plain---Grand Isle
PS    613      1       US---Lake Erie
PS    640      2       US---Lake Erie---
                       Long Point (land)
PS    608      1       US---Lake George
PS    619      2       US---Lake Huron---
                       Barrie Is.
PS    604      2       US---Lake Huron---
                       Bois Blanc Is.
PS    641      2       US---Lake Huron---
                       Christian Is.
PS    612      2       US---Lake Huron---
                       Cockburn Is.
PS    609      2       US---Lake Huron---
                       Drummond Is.
PS    625      2       US---Lake Huron---
                       Fitzwilliam Is.
PS    615      2       US---Lake Huron---
                       Manitoulin Is.
PS    496      1       US---Lake Mead (east)
PS    494      1       US---Lake Mead
                       (west)
PS    599      2       US---Lake Michigan---
                       Beaver Is.
PS    594      2       US---Lake Michigan---
                       Manitou Is.
PS    591      2       US---Lake Michigan---
                       Washington Is.
PS    645      1       US---Lake Ontario
PS    662      2       US---Lake Ontario---
                       island
PS    667      2       US---Lake Ontario---
                       island
PS    670      2       US---Lake Ontario---
                       island
PS    601      1       US---Lake Seminole
PS    618      1       US---Lake St. Clair
PS    550      1       US---Lake Superior
PS    593      2       US---Lake Superior---
                       Grand Is.
PS    605      2       US---Lake Superior---
                       island
PS    581      2       US---Lake Superior---
                       Isle Royale
PS    556      2       US---Lake Superior---
                       Madeline Is.
PS    595      2       US---Lake Superior---
                       Michipicoten Is.
PS    558      2       US---Lake Superior---
                       Oak Is.
PS    563      2       US---Lake Superior---
                       Outer Is.
PS    583      2       US---Lake Superior---
                       Pie Is.
PS    559      2       US---Lake Superior---
                       Stockton Is.
PS    480      1       US---Lake Tahoe
PS    526      1       US---Lake Texoma
PS    587      1       US---Lakes Michigan
                       and Huron
PS    719      1       US---Long Is.---Great
                       South Bay
PS    540      4       US---Louisiana
PS    543      1       US---Louisiana---Cal
                       casieu Lake
PS    584      4       US---Louisiana---Cat
                       Is.
PS    546      1       US---Louisiana---
                       Grand Lake
PS    555      4       US---Louisiana---
                       island
PS    557      4       US---Louisiana---
                       island
PS    569      4       US---Louisiana---
                       island
PS    570      4       US---Louisiana---
                       island
PS    571      4       US---Louisiana---
                       island
PS    574      4       US---Louisiana---
                       island
PS    575      4       US---Louisiana---
                       island
PS    576      4       US---Louisiana---
                       island
PS    577      4       US---Louisiana---
                       island
PS    578      4       US---Louisiana---
                       island
PS    579      4       US---Louisiana---
                       island
PS    580      4       US---Louisiana---
                       island
PS    560      1       US---Louisiana---
                       Lake Maurepas
PS    565      1       US---Louisiana---
                       Lake Pontchartrain
PS    551      4       US---Louisiana---
                       Marsh Is.
PS    541      1       US---Louisiana---Sab
                       ine Lake
PS    561      4       US---Louisiana---Tim
                       balier Is.
PS    548      1       US---Louisiana---
                       White Lake
PS    730      5       US---Maine
PS    736      5       US---Maine---island
PS    737      5       US---Maine---island
PS    738      5       US---Maine---island
PS    740      5       US---Maine---island
PS    741      5       US---Maine---island
PS    742      5       US---Maine---island
PS    743      5       US---Maine---island
PS    744      5       US---Maine---island
PS    745      5       US---Maine---island
PS    646      4       US---Maryland
PS    697      4       US---Maryland
PS    698      4       US---Maryland
PS    679      1       US---Maryland---inlet
PS    668      4       US---Maryland---
                       island
PS    671      4       US---Maryland---
                       island
PS    673      4       US---Maryland---
                       island
PS    674      4       US---Maryland---
                       island
PS    709      4       US---Massachusetts
PS    729      1       US---Massachusetts---
                       bay
PS    733      1       US---Massachusetts---
                       inlet
PS    731      4       US---Massachusetts---
                       Marthas Vineyard
PS    732      4       US---Massachusetts---
                       Nantucket Is.
PS    592      2       US---Michigan (lower)
PS    564      2       US---Michigan (upper)
PS    524      4       US---Minnesota
PS    531      1       US---Minnesota---
                       Lake of the Woods
PS    536      4       US---Minnesota---
                       Lake of the Woods---
                       island
PS    537      4       US---Minnesota---
                       Lake of the Woods---
                       island
PS    539      4       US---Minnesota---
                       Lake of the Woods---
                       island
PS    533      4       US---Minnesota---
                       Lake of the Woods---
                       land west of lake
PS    547      4       US---Minnesota---lit
                       tle piece
PS    544      1       US---Minnesota---
                       Namakan Lake
PS    542      1       US---Minnesota---
                       Rainy Lake
PS    532      1       US---Minnesota---
                       Shoal Lake
PS    552      2       US---Mississippi
PS    530      2       US---Missouri
PS    492      5       US---Montana
PS    511      5       US---Nebraska
PS    481      5       US---Nevada
PS    720      3       US---New Hampshire
PS    715      1       US---New Hamp
                       shire---lake
PS    717      1       US---New Hamp
                       shire---lake
PS    694      2       US---New Jersey
PS    701      2       US---New Jersey---
                       island
PS    704      1       US---New Jersey---
                       Newark Bay
PS    504      5       US---New Mexico
PS    644      3       US---New York
PS    722      3       US---New York---
                       Fishers Is.
PS    706      3       US---New York---
                       Long Is.
PS    721      3       US---New York---
                       Shelter Is.
PS    607      4       US---North Carolina
PS    651      4       US---North Carolina---
                       Cape Fear
PS    676      4       US---North Carolina---
                       island
PS    677      4       US---North Carolina---
                       island
PS    681      4       US---North Carolina---
                       island
PS    684      4       US---North Carolina---
                       island
PS    685      4       US---North Carolina---
                       island
PS    688      4       US---North Carolina---
                       island
PS    689      4       US---North Carolina---
                       island
PS    690      4       US---North Carolina---
                       island
PS    691      4       US---North Carolina---
                       island
PS    692      4       US---North Carolina---
                       island
PS    513      3       US---North Dakota
PS    603      4       US---Ohio
PS    515      3       US---Oklahoma
PS    468      3       US---Oregon
PS    638      6       US---Pennsylvania
PS    723      6       US---Rhode Is.
PS    725      6       US---Rhode Is.---
                       Block Is.
PS    726      6       US---Rhode Is.---
                       island
PS    727      6       US---Rhode Is.---
                       island
PS    728      6       US---Rhode Is.---
                       island
PS    606      1       US---Sault Ste. Marie
PS    614      2       US---South Carolina
PS    512      2       US---South Dakota
PS    703      3       US---Staten Is.
PS    566      3       US---Tennessee
PS    506      2       US---Texas
PS    522      2       US---Texas---island
PS    534      2       US---Texas---island
PS    523      2       US---Texas---Padre Is.
PS    497      3       US---Utah
PS    712      2       US---Vermont
PS    611      2       US---Virginia
PS    675      2       US---Virginia
PS    682      2       US---Virginia
PS    683      2       US---Virginia
PS    672      2       US---Virginia---island
PS    678      2       US---Virginia---island
PS    680      2       US---Virginia---island
PS    695      2       US---Virginia---island
PS    467      2       US---Washington
PS    471      2       US---Washington---
                       island
PS    472      2       US---Washington---
                       island
PS    473      2       US---Washington---
                       island
PS    474      2       US---Washington---
                       island
PS    475      2       US---Washington---
                       island
PS    476      2       US---Washington---
                       island
PS    477      2       US---Washington---
                       island
PS    620      3       US---West Virginia
PS    545      3       US---Wisconsin
PS    502      4       US---Wyoming
US    247      3       Utah
PO    1097     3       Venezuela
PS    710      3       Venezuela
US    412      2       Vermont
PO    1287     4       Vietnam
PS    929      4       Vietnam
US    331      2       Virginia
US    382      2       Virginia
US    389      2       Virginia
US    390      2       Virginia
US    379      2       Virginia---island
US    385      2       Virginia---island
US    387      2       Virginia---island
US    401      2       Virginia---island
PO    1152     3       Wales
PS    794      3       Wales
US    224      2       Washington
US    227      2       Washington---island
US    228      2       Washington---island
US    229      2       Washington---island
US    230      2       Washington---island
US    231      2       Washington---island
US    232      2       Washington---island
US    233      2       Washington---island
PO    1166     4       West Germany
PS    808      4       West Germany
US    338      3       West Virginia
PO    1128     6       Western Sahara
PS    770      6       Western Sahara
US    277      3       Wisconsin
US    249      4       Wyoming
PO    1245     6       Yemen (Aden)
PS    887      6       Yemen (Aden)
CO    138      2       Yemen (Aden)---
                       Socotra (island)
PO    1256     6       Yemen (Aden)---
                       Socotra (island)
PS    898      6       Yemen (Aden)---
                       Socotra (island)
PO    1243     5       Yemen (Sana)
PS    885      5       Yemen (Sana)
PO    1193     4       Yugoslavia
PS    835      4       Yugoslavia
PO    1190     6       Zaire
PS    832      6       Zaire
PO    1209     5       Zambia
PS    851      5       Zambia
PO    1214     3       Zimbabwe
PS    856      3       Zimbabwe
----------------------------------------------

Mp 7. Ezmap parameter descriptions

AR

Character---ARea. For retrieval only. The value of the map limits specifier JLTS from the last call to MAPSET.

Default: MA

C1

Integer---Color index 1 (for map perimeter).

>=0 Specifies the color index of the map's perimeter. The user must do the calls to GKS routines to define the color indices.

<0 No change in color index from one part of the map to another.

Default: -1

C2

Integer---Color index 2 (for map grid).

>=0 Specifies the color index of the map's grid lines. The user must do the calls to GKS routines to define the color indices.

<0 No change in color index from one part of the map to another.

Default: -1

C3

Integer---Color index 3 (for map labels).

>=0 Specifies the color index of the map's labels. The user must do the calls to GKS routines to define the color indices.

<0 No change in color index from one part of the map to another.

Default: -1

C4

Integer---Color index 4 (for map limb line).

>=0 Specifies the color index of the map's limb line. The user must do the calls to GKS routines to define the color indices.

<0 No change in color index from one part of the map to another.

Default: -1

C5

Integer---Color index 5 (for continental outlines).

>=0 Specifies the color index of continental outlines on the map. The user must do the calls to GKS routines to define the color indices.

<0 No change in color index from one part of the map to another.

Default: -1

C6

Integer---Color index 6 (for US state outlines).

>=0 Specifies the color index of US state outlines on the map. The user must do the calls to GKS routines to define the color indices.

<0 No change in color index from one part of the map to another.

Default: -1

C7

Integer---Color index 7 (for countries).

>=0 Specifies the color index of country outlines (political boundaries) on the map. The user must do the calls to GKS routines to define the color indices.

<0 No change in color index from one part of the map to another.

Default: -1

DA

Integer---Grid DAshline pattern. A 16-bit quantity that defines a dashed-line pattern. The value of DA is converted to a 16-bit binary number where 0 represents a blank and 1 represents a dot or dash.

Default: 21845 (binary 0101010101010101)

DD

Real---Distance between Dots. The distance between dots along a dotted line drawn by MAPIT.

Default: 12. (out of 4096. See the description for the RE parameter.)

DL

Integer---Dotted Line flag.

<>0 User calls to MAPIT draw dotted lines.

0 Lines drawn by MAPIT are solid or dashed, depending on the current state of the Dashline package.

Default: 0

DL may be reset by a user version of MAPUSR to change the way in which the perimeter, the grid, the limb lines, and the outlines are drawn.

DO

Integer---Dotted Outline flag.

<>0 Outlines are dotted.

0 Outlines are solid.

Default: 0

EL

Integer---ELliptical perimeter flag.

<>0 Only that part of the map which falls inside an ellipse inscribed within the normal rectangular perimeter is drawn. This is particularly appropriate for use with azimuthal projections and angular limits specifying a square (in which case the ellipse becomes a circle), but it will work for any map.

0 That part of the map that falls within the rectangular perimeter is drawn.

Default: 0

ER

Integer---ERror. The current value of the error flag. For retrieval only.

Default: 0 (no error)

G1

Integer---Group 1 (group identifier for geographic entities and perimeter). The group identifier to be used by MAPBLA when putting into the area map the group of edges that define the division of the plotter frame into the projected images of geographic entities.

Default: 1

G2

Integer---Group 2 (group identifier for vertical strips). The group identifier to be used by MAPBLA when putting into the area map the group of edges that define the division of the plotter frame into vertical strips.

Default: 2

GD

Real---Grid Drawing resolution. The distance between points used to draw the grid, in degrees. User values must fall between .001 and 10.

Default: 1.

GR

Real---GRid spacing. The desired grid spacing, in degrees.

0 Grid drawing is suppressed.

Default: 10.

IN

Integer---INitialization flag. For retrieval only.

<>0 Ezmap needs to be initialized (by a CALL MAPINT).

0 Ezmap does not need to be initialized.

Default: 0

LA

Integer---meridian/pole LAbel flag.

<>0 Label the meridians and the poles.

0 Do not label the meridians and poles.

Default: 1

LS

Integer---Label Size. Controls label size by specifying a character width, to be used in a call to PWRIT.

Default: 1 (gives a character width of 12 plotter units)

MV

Real---Minimum Vector length. To be used by MAPIT. Any point closer to the previous point than this is omitted.

Default: 4. (out of 4096; see the description for RE)

OU

Character---OUtline data flag. Says which set of outline data to use:

NO No outlines.

CO Continental outlines.

PO Continental outlines plus international
political outlines.

US US state outlines.

PS Continental outlines plus international
political outlines plus U.S. state outlines.

Default: CO

PE

Integer---PErimeter flag. Draws the perimeter around the map.

<>0 Draw the perimeter.

0 No perimeter is drawn.

Default: 1

PN

Real---PLON value. The value of PLON from the last call to MAPROJ. For retrieval only.

Default: 0.

PR

Character---PRojection specifier value. The value of the projection specifier JPRJ from the last call to MAPROJ. For retrieval only.

Default: CE

PT

Real---PLAT value. The value of PLAT from the last call to MAPROJ. For retrieval only.

Default: 0.

P1

Real---PLM1(1) value. Retrieves the PLM1(1) value from the call to MAPSET. For retrieval only.

Default: 0.

P2

Real---PLM2(1) value. Retrieves the PLM2(1) value from the call to MAPSET. For retrieval only.

Default: 0.

P3

Real---PLM3(1) value. Retrieves the PLM3(1) value from the call to MAPSET. For retrieval only.

Default: 0.

P4

Real---PLM4(1) value. Retrieves the PLM4(1) value from the call to MAPSET. For retrieval only.

Default: 0.

P5

Real---PLM1(2) value. Retrieves the PLM1(2) value from the call to MAPSET. For retrieval only.

Default: 0.

P6

Real---PLM2(2) value. Retrieves the PLM2(2) value from the call to MAPSET. For retrieval only.

Default: 0.

P7

Real---PLM3(2) value. Retrieves the PLM3(2) value from the call to MAPSET. For retrieval only.

Default: 0.

P8

Real---PLM4(2) value. Retrieves the PLM4(2) value from the call to MAPSET. For retrieval only.

Default: 0.

RE

Integer---REsolution. The width of the target plotter, in plotter units.

Default: 4096

RO

Integer---ROtation. The value of ROTA from the last call to MAPROJ. For retrieval only.

Default: 0

SA

Real---SAtellite view distance. The value is the distance of the satellite from the center of the earth, in multiples of the earth's radius. See also S1 and S2.

>1. A satellite-view projection replaces the orthographic projection.

0. The orthographic projection is used.

Default: 0.

S1

Real---Satellite angle 1. Measures the angle, in degrees, between the line from the satellite to the center of the earth and the line of sight of the satellite. Used only when SA>1.

Default: 0.

S2

Real---Satellite angle 2. Used only when SA>1.

Let the case where S1=S2=0 be called the basic satellite view. If S1<>0.0, then S2 specifies the angle, in degrees, from the positive u axis of the basic satellite view counterclockwise to the line OP, where O is the origin of the basic view, and P is the projection on the basic view, of the desired line of sight from the satellite. When S1 and S2 are not equal to zero, the portion of the earth projected remains the same, but the edge of the part of the u/v plane covered by the projection is an ellipse, a parabola, or a hyperbola with an axis at an angle S2 to the u axis.

Default: 0.

SR

Real---Latitude/longitude Search Radius. A search radius, in degrees, used by MAPINT in finding the latitude/longitude range of a map. User values must be between .001 and 10. This value should only be changed on the advice of an NCAR consultant.

Default: 1.

VS

Integer---Vertical-Stripping parameter. Determines whether MAPBLA puts edge group G2 into the area map to define a set of more than one vertical strip.

<=0 MAPBLA is prevented from putting edge group G2 into the area map.

>0 Requests that MAPBLA put edge group G2 into the area map and specifies the number of vertical strips.

Default: 1 (A single vertical strip is defined to encompass the entire plot.)

XL

Real---XLOW value. The value of XLOW from the last call to MAPPOS. For retrieval only.

Default: 0.05

XR

Real---XROW value. The value of XROW from the last call to MAPPOS. For retrieval only.

Default: 0.95

YB

Real---YBOW value. The value of YBOW from the last call to MAPPOS. For retrieval only.

Default: 0.05

YT

Real---YTOW value. The value of YTOW from the last call to MAPPOS. For retrieval only.

Default: 0.95

Previous Chapter          Tutorial Home          Next Chapter
