Figure 8.15

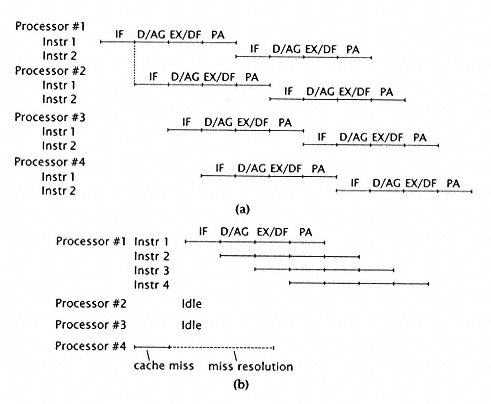

Two examples of SRMP: (a) with strict time multiplexing of resources. (b)
with processor pipelined execution and task/processor switch on delay.
Figure 8.16

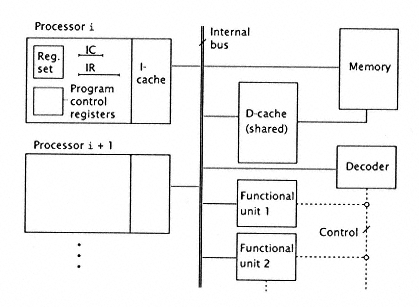

Shared resource multiprocessor (SRMP).
